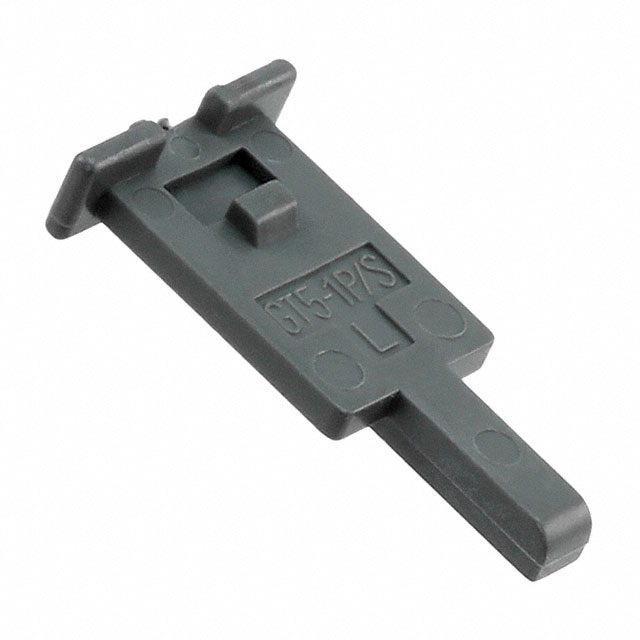

GT5-1P/S-R

Active

Hirose Electric USA, Inc.

CONN RETAINER FOR GT5 HOUSINGS

Deep-Dive with AI

Search across all available documentation for this part.

GT5-1P/S-R

Active

Hirose Electric USA, Inc.

CONN RETAINER FOR GT5 HOUSINGS

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	GT5-1P/S-R

Accessory Type	Retainer
Body Material	Polybutylene Terephthalate (PBT)
Color	Gray
For Use With/Related Products	GT5 Housings

GT5 Series

Automotive Connectors F CONN COAX SHIELDED CBL HOUSING

Part	For Use With/Related Products	Body Material	Color	Accessory Type	Contact Finish	Mounting Type	Contact Termination	Type	Wire Gauge	Contact Material	Pin or Socket	Connector Style	Features	Frequency - Max [Max]	Connector Type	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Dielectric Material	Number of Ports	Mating Cycles	Center Contact Plating	Housing Color	Impedance	Fastening Type	Center Contact Material
Hirose Electric USA, Inc. GT5-1P/S-R	GT5 Housings	Polybutylene Terephthalate (PBT)	Gray	Retainer
Hirose Electric USA, Inc. GT5-30/F4-5PCF(70)					Tin	Free Hanging (In-Line)	Crimp	M	30 AWG	Brass	Pin
Hirose Electric USA, Inc. GT5-1PP-HU(D)(70)	M Terminals	Polybutylene Terephthalate (PBT)	Purple	Housing								M	Keyed
Hirose Electric USA, Inc. GT5-1S-HU(A)	F Terminals	Polybutylene Terephthalate (PBT)	Brown	Housing								F	Keyed
Hirose Electric USA, Inc. GT5-2PP-HU(B)(70)	M Terminals	Polybutylene Terephthalate (PBT)	Green	Housing								M	2 Position Keyed
Hirose Electric USA, Inc. GT5-30/0.7-1.5PCF(70)					Tin	Free Hanging (In-Line)	Crimp	M	30 AWG	Brass	Pin
Hirose Electric USA, Inc. GT5-4P-DS(70)		Polybutylene Terephthalate (PBT)				Through Hole Right Angle	Solder					Coaxial	Mounting Flange	2 GHz	Male Pin Receptacle	250 VDC	-30 ░C	105 ░C	Polybutylene Terephthalate (PBT)	4	30	Tin	Gray	50 Ohms	Push-Pull	Brass
Hirose Electric USA, Inc. GT5-1S-HU(A)(35)	F Terminals	Polybutylene Terephthalate (PBT)	Brown	Housing								F	Keyed
Hirose Electric USA, Inc. GT5-1S-HU(D)	F Terminals	Polybutylene Terephthalate (PBT)	Purple	Housing								F	Keyed
Hirose Electric USA, Inc. GT5-2S-HU	F Terminals	Polybutylene Terephthalate (PBT)	Gray	Housing								F	2 Positions

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 0.29
		10	$ 0.25
		25	$ 0.22
		50	$ 0.20
		100	$ 0.19
		300	$ 0.17
		500	$ 0.16
		1000	$ 0.14

Description

General part information

GT5 Series

Automotive Connectors F CONN COAX SHIELDED CBL HOUSING

Documents

Technical documentation and resources

No documents available
