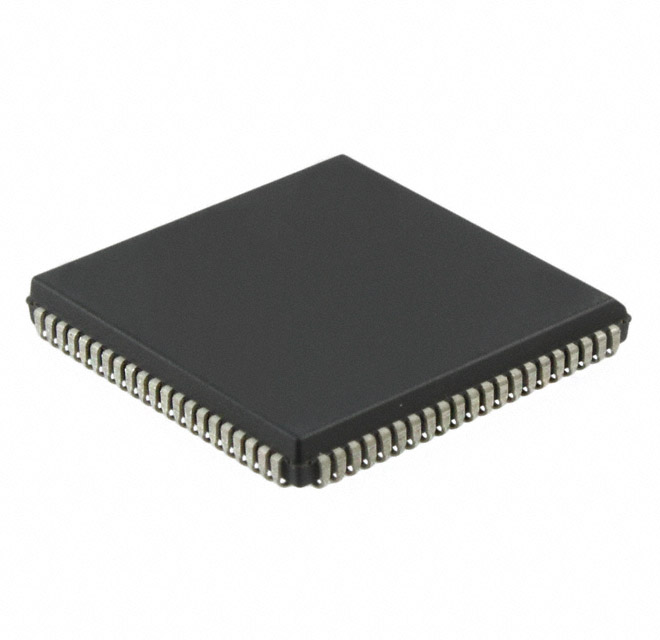

7024L15JG

Active

Renesas Electronics Corporation

IC SRAM 64KBIT PARALLEL 84PLCC

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet 7024 Datasheet

7024L15JG

Active

Renesas Electronics Corporation

IC SRAM 64KBIT PARALLEL 84PLCC

Deep-Dive with AI

DocumentsDatasheet 7024 Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	7024L15JG

Access Time	15 ns
Memory Format	SRAM
Memory Interface	Parallel
Memory Size	64 Kbit
Memory Type	Volatile
Mounting Type	Surface Mount
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C
Package / Case	84-LCC (J-Lead)
Supplier Device Package	84-PLCC (29.31x29.31)
Technology	SRAM - Dual Port, Asynchronous
Voltage - Supply [Max]	5.5 V
Voltage - Supply [Min]	4.5 V
Write Cycle Time - Word, Page	15 ns

7024S25 Series

4K x 16 Dual-Port RAM

...

Part	Access Time	Supplier Device Package	Memory Interface	Technology	Write Cycle Time - Word, Page	Memory Size	Memory Type	Memory Format	Voltage - Supply [Min]	Voltage - Supply [Max]	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Supplier Device Package [y]	Supplier Device Package [x]
Renesas Electronics Corporation 7024L15PFG8	15 ns	100-TQFP (14x14)	Parallel	SRAM - Dual Port Asynchronous	15 ns	64 Kbit	Volatile	SRAM	4.5 V	5.5 V	Surface Mount	70 °C	0 °C	100-LQFP
Renesas Electronics Corporation 7024L15JG	15 ns	84-PLCC (29.31x29.31)	Parallel	SRAM - Dual Port Asynchronous	15 ns	64 Kbit	Volatile	SRAM	4.5 V	5.5 V	Surface Mount	70 °C	0 °C	84-LCC (J-Lead)
Renesas Electronics Corporation 7024S17PFI	17 ns	100-TQFP (14x14)	Parallel	SRAM - Dual Port Asynchronous	17 ns	64 Kbit	Volatile	SRAM	4.5 V	5.5 V	Surface Mount	85 °C	-40 °C	100-LQFP
Renesas Electronics Corporation 7024L17G	17 ns	84-PGA	Parallel	SRAM - Dual Port Asynchronous	17 ns	64 Kbit	Volatile	SRAM	4.5 V	5.5 V	Through Hole	70 °C	0 °C	84-BPGA	27.94	27.94
Renesas Electronics Corporation 7024L20PF	20 ns	100-TQFP (14x14)	Parallel	SRAM - Dual Port Asynchronous	20 ns	64 Kbit	Volatile	SRAM	4.5 V	5.5 V	Surface Mount	70 °C	0 °C	100-LQFP
Renesas Electronics Corporation 7024S15PFG						64 Kbit		SRAM
Renesas Electronics Corporation 7024S35G	35 ns	84-PGA	Parallel	SRAM - Dual Port Asynchronous	35 ns	64 Kbit	Volatile	SRAM	4.5 V	5.5 V	Through Hole	70 °C	0 °C	84-BPGA	27.94	27.94
Renesas Electronics Corporation 7024L35G	35 ns	84-PGA	Parallel	SRAM - Dual Port Asynchronous	35 ns	64 Kbit	Volatile	SRAM	4.5 V	5.5 V	Through Hole	70 °C	0 °C	84-BPGA	27.94	27.94
Renesas Electronics Corporation 7024S15JI8	15 ns	84-PLCC (29.31x29.31)	Parallel	SRAM - Dual Port Asynchronous	15 ns	64 Kbit	Volatile	SRAM	4.5 V	5.5 V	Surface Mount	85 °C	-40 °C	84-LCC (J-Lead)
Renesas Electronics Corporation 7024L15PFGI8			Parallel			64 Kbit		SRAM

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	105	$ 35.40

Description

General part information

7024S25 Series

The 7024 is a high-speed 4Kx 16 Dual-Port Static RAM designed to be used as a stand-alone 64K-bit Dual-Port RAM or as a combination MASTER/SLAVE Dual-Port RAM for 32-bit or more word systems. An automatic power down feature controlled by Chip Enable (CE) permits the on-chip circuitry of each port to enter a very low standby power mode. Military grade product in compliance with MIL-PRF-38535 QML is available.
