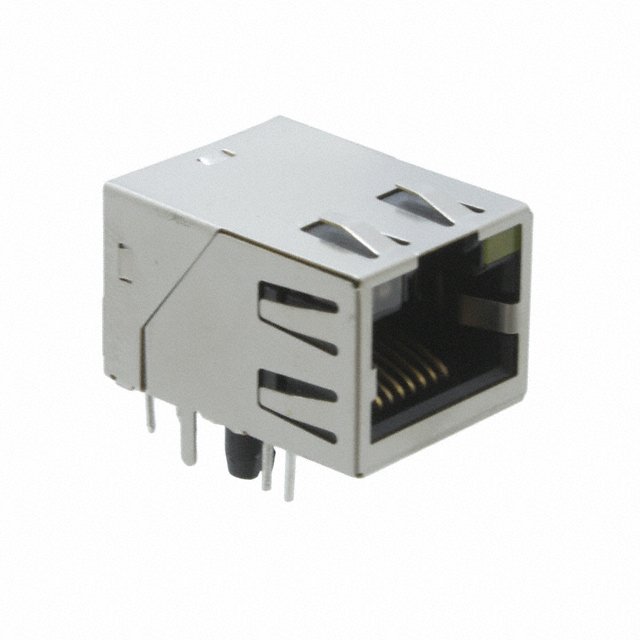

A64-114-231N411

Obsolete

EDAC Inc.

CONN JACK 1PORT 100 BASE-T PCB

Search across all available documentation for this part.

Obsolete

EDAC Inc.

CONN JACK 1PORT 100 BASE-T PCB

Technical Specifications

Parameters and characteristics for this part

Specification	A64-114-231N411

Applications	10/100 Base-T
Connector Type	RJ45
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Phosphor Bronze
Height Above Board	13.45 mm
Height Above Board	0.53 in
Housing Material	Polyester, Polyamide (PA), Nylon
LED Color	Yellow, Green
Mounting Type	Through Hole
Number of Cores per Jack	5
Number of Ports	1
Number of Rows	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C
Orientation	90 °
Shield Material	Copper Alloy
Shielding	Shielded, EMI Finger
Tab Direction	Up
Termination	Solder

Part	Shielding	Housing Material	Mounting Type	LED Color	Termination	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Height Above Board	Height Above Board	Number of Rows	Contact Finish Thickness	Contact Finish Thickness	Number of Cores per Jack	Contact Finish	Contact Material	Tab Direction	Orientation	Shield Material	Number of Ports	Applications
EDAC Inc. A64-114-231N411	Shielded EMI Finger	Nylon Polyamide (PA) Polyester	Through Hole	Green Yellow	Solder	RJ45	70 °C	0 °C	13.45 mm	0.53 in	1	0.76 Ám	30 Áin	5	Gold	Phosphor Bronze	Up	90 °	Copper Alloy	1	10/100 Base-T

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

1 Port RJ45Through Hole 10/100 Base-T
