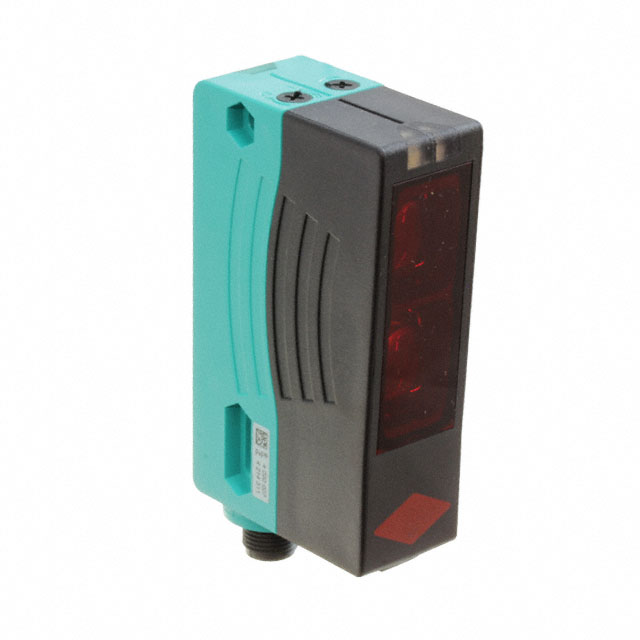

RL28-8-H-700-IR/49/105

Active

PEPPERL+FUCHS

PHOTO SEN 20-700MM BACK SUPPRESS

Search across all available documentation for this part.

Active

PEPPERL+FUCHS

PHOTO SEN 20-700MM BACK SUPPRESS

Technical Specifications

Parameters and characteristics for this part

Part	Voltage - Supply [Max]	Voltage - Supply [Min]	Light Source	Adjustment Type	Ingress Protection	Sensing Method	Connection Method	Response Time	Operating Temperature [Min]	Operating Temperature [Max]	Sensing Distance [Min]	Sensing Distance [Max]	Sensing Distance [Min]	Sensing Distance [Max]	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Output Configuration
PEPPERL+FUCHS RL28-8-H-700-IR/49/105	30 VDC	10 VDC	Infrared	Adjustable	IP67	Diffuse	Connector M12	2 ms	-40 °C	60 °C	20 mm	700 mm	0.787 "	27.559 "
PEPPERL+FUCHS RL28-8-H-1500-LAS/47/105	30 VDC	10 VDC	Red Laser Diode (650nm)	Adjustable	IP67	Diffuse	Connector M12	3.5 ms			100 mm	1.5 m	3.937 "	59.055 "	-10 °C	50 °C	PNP - Open Collector Light-ON\Dark-ON
PEPPERL+FUCHS RL28-8-H-2000-IR/105/110 US	30 VDC	10 VDC	Infrared	Adjustable	IP67	Diffuse	Connector M12	2 ms	-40 °C	60 °C	20 mm	2000 mm	0.787 "	78.74 "			Light-On/Dark-On

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Diffuse Optical Sensor 0.787" ~ 27.559" (20mm ~ 700mm) NPN/PNP - Open Collector, Light-ON\Dark-ON
