5853-II

Active

BRADY

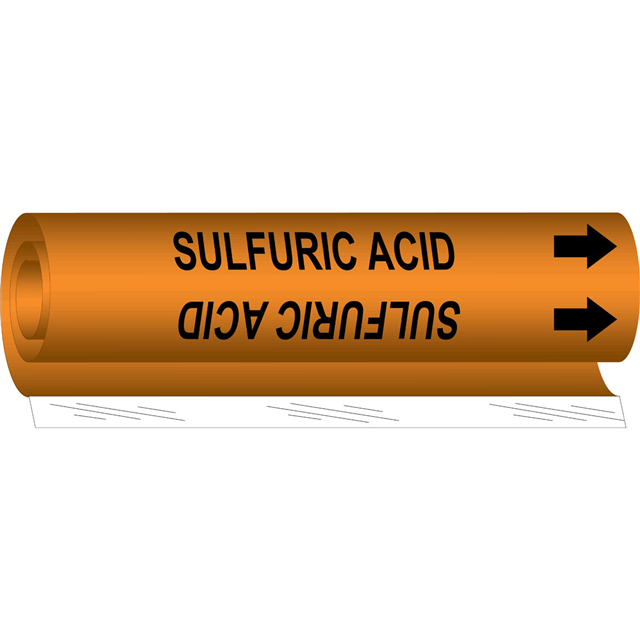

B689 5853-II BLK/ORG STYLE II

Search across all available documentation for this part.

Active

BRADY

B689 5853-II BLK/ORG STYLE II

Technical Specifications

Parameters and characteristics for this part

Specification	5853-II

Application Specifics	Notice
Applications	Pipe
Arrangement	Symbol and Text
Color - Background	Orange
Color - Legend	Black
Features	Chemical Resistant
Language	English
Legend (Symbol Only)	Directional Arrow
Legend (Text)	Sulfuric Acid
Length	26 in
Length	660.4 mm
Location	Outdoor
Material - Body	Plastic
Mounting Type	Snap On
Outside Pipe Diameter (Max) [diameter]	2.5 "
Outside Pipe Diameter (Max) [diameter]	63.5 mm
Outside Pipe Diameter (Min) [Min] [diameter]	200.03 mm
Outside Pipe Diameter (Min) [Min] [diameter]	7.875 in
Print Type	Pre-Printed
Shape	Rectangle
Width	304.8 mm
Width [x]	12 in

Part	Arrangement	Application Specifics	Applications	Location	Outside Pipe Diameter (Min) [Min] [diameter]	Outside Pipe Diameter (Min) [Min] [diameter]	Print Type	Color - Background	Legend (Text)	Features	Legend (Symbol Only)	Outside Pipe Diameter (Max) [diameter]	Outside Pipe Diameter (Max) [diameter]	Language	Length	Length	Mounting Type	Material - Body	Shape	Color - Legend	Width	Width [x]	Width [x]
BRADY 5853-II	Symbol and Text	Notice	Pipe	Outdoor	200.03 mm	7.875 in	Pre-Printed	Orange	Sulfuric Acid	Chemical Resistant	Directional Arrow	2.5 "	63.5 mm	English	26 in	660.4 mm	Snap On	Plastic	Rectangle	Black	304.8 mm	12 in
BRADY 5853-I	Symbol and Text	Directionality	Pipe	Outdoor	60.33 mm	2.375 in	Pre-Printed	Orange	Sulfuric Acid	Abrasion Resistant Chemical Resistant Humidity Resistant UV Resistant Water Resistant Weather Resistant	Directional Arrow	1.5 "	38.1 mm	English	9 "	228.6 mm	Snap On	Plastic	Rectangle	Black		8 in	203.2 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 23.89

General part information

B689 5853-II BLK/ORG STYLE II

Technical documentation and resources
