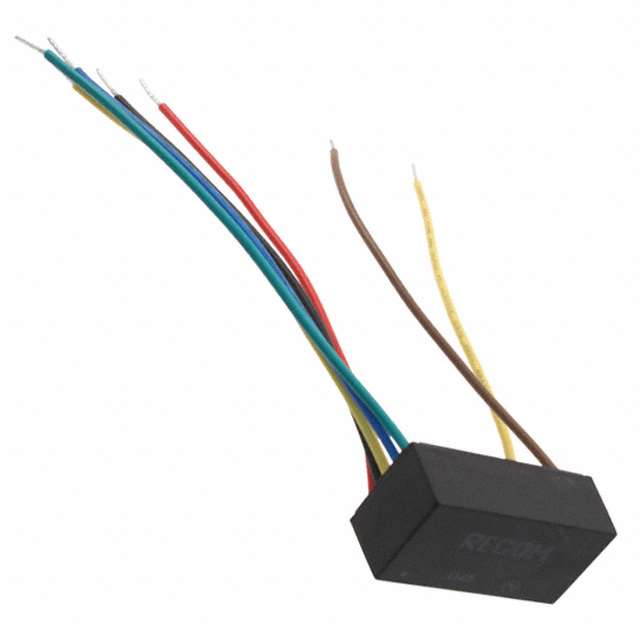

RCD-48-0.70/W

Active

RECOM Power

LED DRIVER DC/DC CONVERTER, RCD-48 SERIES, 39.2 W, 56 V, 700 MA, ANALOGUE, PWM, CHASSIS

Search across all available documentation for this part.

Active

RECOM Power

LED DRIVER DC/DC CONVERTER, RCD-48 SERIES, 39.2 W, 56 V, 700 MA, ANALOGUE, PWM, CHASSIS

Technical Specifications

Parameters and characteristics for this part

LED Power Supplies 12-60VIN 2-56VOUT LED DRIVER DC/DC

Part	Topology	Weight	Weight	Voltage - Input (Min) [Min]	Features	Termination Style	Number of Outputs	Mounting Type	Dimming	Voltage - Output [Min]	Voltage - Output [Max]	Type	Efficiency	Ratings	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Approval Agency	Current - Output (Max) [Max]	Voltage - Input (Max) [Max]	Power (Watts)	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case
RECOM Power RCD-48-0.35/W	Buck	16.33 g	0.036 lb	9 V	OTP Remote On/Off SCP	Wire Leads	1	Chassis Mount	Analog PWM	2 V	56 V	Constant Current	96 %	IP67	16.7 mm	32.6 mm	0.44 "	11.1 mm	1.28 in	0.66 "	EN UL	350 mA	60 V	20 W	-40 °C	80 C
RECOM Power RCD-48-0.70/W	Buck	16.33 g	0.036 lb	9 V	OTP Remote On/Off SCP	Wire Leads	1	Chassis Mount	Analog PWM	2 V	56 V	Constant Current	96 %	IP67	16.7 mm	32.6 mm	0.44 "	11.1 mm	1.28 in	0.66 "	EN UL	700 mA	60 V	39 W	-40 °C	75 ░C
RECOM Power RCD-48-0.70	Buck	13.15 g	0.029 lb	9 V	Remote On/Off SCP		1	Through Hole	Analog PWM	2 V	56 V	Constant Current	96 %								EN UL	700 mA	60 V	39 W	-40 °C	75 ░C	7-DIP Module
RECOM Power RCD-48-1.20/M	Buck	16.33 g	0.036 lb	9 V	Remote On/Off SCP		1	Through Hole	Analog PWM	2 V	56 V	Constant Current	96 %		16 mm	32.6 mm	0.44 "	11.2 mm	1.28 in	0.62 "	EN UL	1.2 A	60 V	67 W			7-DIP Module

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Power Supplies 12-60VIN 2-56VOUT LED DRIVER DC/DC
