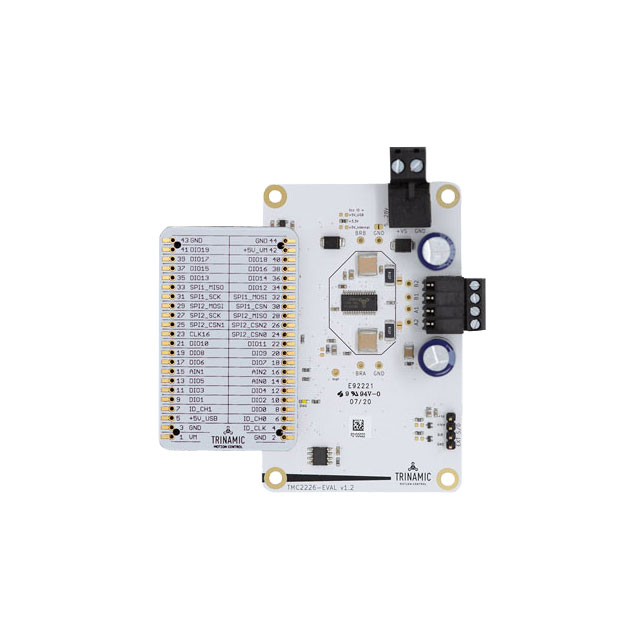

TMC2226-EVAL

Active

Analog Devices Inc./Maxim Integrated

EVALUATION BOARD WITH TMC2226

Search across all available documentation for this part.

Active

Analog Devices Inc./Maxim Integrated

EVALUATION BOARD WITH TMC2226

Technical Specifications

Parameters and characteristics for this part

Specification	TMC2226-EVAL

Primary Attributes	Motors (Stepper)
Secondary Attributes	Graphical User Interface (GUI)
Supplied Contents	Board(s)
Type	Power Management
Utilized IC / Part	TMC2226

Part	Supplied Contents	Type	Secondary Attributes	Primary Attributes	Utilized IC / Part	Package / Case	Package / Case [custom]	Package / Case [x]	Supplier Device Package	Applications	Current - Output	Output Configuration	Step Resolution [Max]	Step Resolution [Min]	Voltage - Load [Min]	Voltage - Load [Max]	Interface	Operating Temperature [Min]	Operating Temperature [Max]	Motor Type - Stepper	Technology	Voltage - Supply [Max]	Voltage - Supply [Min]	Function	Mounting Type
Analog Devices Inc./Maxim Integrated TMC2226-EVAL	Board(s)	Power Management	Graphical User Interface (GUI)	Motors (Stepper)	TMC2226
Analog Devices Inc./Maxim Integrated TMC2226-SA-T						28-TSSOP Exposed Pad	4.4 mm	0.173 in	28-HTSSOP	General Purpose	2 A	Step/Direction	1	0.00390625	4.75 V	29 V	Step/Direction UART	-40 °C	125 ¯C	Bipolar	Power MOSFET	5 V	3.3 V	Driver - Fully Integrated Control and Power Stage	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 67.86

General part information

TMC2226 Motor Controller/Driver, Stepper Power Management Evaluation Board
