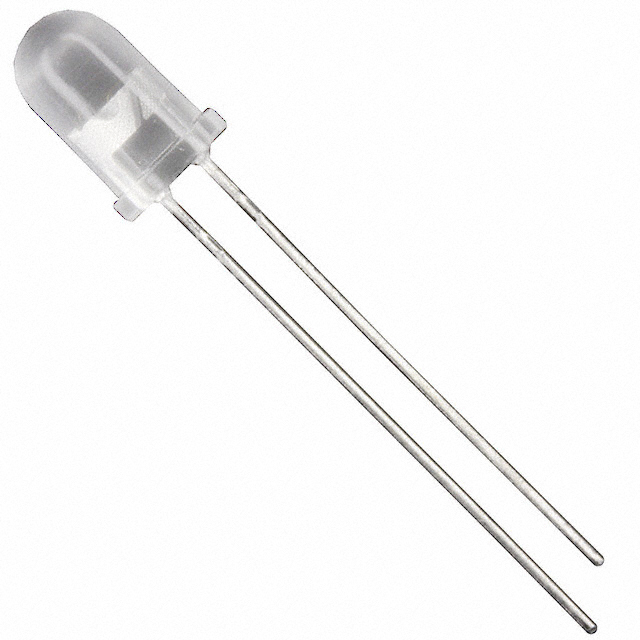

C5SMF-BJE-CT34Q3T2

Active

Cree LED

ANY 4 CONSECUTIVE BINS FROM T3 (1310MCD) - U4 (2130MCD), ANY 1 HUE FROM B3-B4, AMMO PACK, IRON LEAD FRAME

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

C5SMF-BJE-CT34Q3T2

Active

Cree LED

ANY 4 CONSECUTIVE BINS FROM T3 (1310MCD) - U4 (2130MCD), ANY 1 HUE FROM B3-B4, AMMO PACK, IRON LEAD FRAME

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	C5SMF-BJE-CT34Q3T2

Color	Blue
Configuration	Standard
Current - Test	20 mA
Height (Max) [Max] [z]	7 mm
Lens Size [x]	5.1 mm
Lens Size [y]	3.7 mm
Lens Style	Oval with Domed Top
Millicandela Rating	1720 mcd
Mounting Type	Through Hole
Package / Case	Radial
Supplier Device Package	OVAL
Supplier Device Package [custom]	5 mm
Viewing Angle [x]	100 °
Viewing Angle [y]	40 °
Voltage - Forward (Vf) (Typ)	3.4 V
Wavelength - Dominant	465 nm

C5SMF Series

...

Part	Lens Style	Viewing Angle [y]	Viewing Angle [x]	Lens Transparency	Lens Color	Supplier Device Package [diameter]	Package / Case	Configuration	Wavelength - Dominant [custom]	Voltage - Forward (Vf) (Typ)	Height (Max) [Max] [z]	Millicandela Rating	Lens Size [x]	Lens Size [y]	Color	Mounting Type	Current - Test	Wavelength - Dominant	Supplier Device Package	Supplier Device Package [custom]
Cree LED C5SMF-GJS-CV14Q7T2	Oval with Domed Top	40 °	100 °	Clear	Green	5 mm	Radial	Standard	527 nm	3.4 V	10.95 mm	2860 mcd	5.1 mm	3.7 mm	Green	Through Hole	20 mA
Cree LED C5SMF-BJS-CT14Q3T1	Oval with Domed Top	40 °	100 °	Clear	Blue		Radial	Standard		3.4 V	10.95 mm	1462 mcd	5.1 mm	3.7 mm	Blue	Through Hole	20 mA	470 nm	OVAL	5 mm
Cree LED C5SMF-BJN-CR0U0352	Oval with Domed Top	40 °	100 °	Clear	Blue		Radial	Standard		3.4 V	7 mm	1340 mcd	5.1 mm	3.7 mm	Blue	Through Hole	20 mA	470 nm	OVAL	5 mm
Cree LED C5SMF-BJN-CR14Q3T1	Oval with Domed Top	40 °	100 °	Clear	Blue		Radial	Standard		3.4 V	7 mm	742 mcd	5.1 mm	3.7 mm	Blue	Through Hole	20 mA	470 nm	OVAL	5 mm
Cree LED C5SMF-GJN-CV14Q7S1	Oval with Domed Top	40 °	100 °	Clear	Green	5 mm	Radial	Standard	527 nm	3.4 V	7 mm	2860 mcd	5.1 mm	3.7 mm	Green	Through Hole	20 mA
Cree LED C5SMF-GJS-CV0Y0792	Oval with Domed Top	40 °	100 °	Clear	Green	5 mm	Radial	Standard	527 nm	3.4 V	10.95 mm	5165 mcd	5.1 mm	3.7 mm	Green	Through Hole	20 mA
Cree LED C5SMF-BJS-CT14Q3T2	Oval with Domed Top	40 °	100 °	Clear	Blue		Radial	Standard		3.4 V	10.95 mm	1462 mcd	5.1 mm	3.7 mm	Blue	Through Hole	20 mA	470 nm	OVAL	5 mm
Cree LED C5SMF-BJE-CT34Q3T2	Oval with Domed Top	40 °	100 °				Radial	Standard		3.4 V	7 mm	1720 mcd	5.1 mm	3.7 mm	Blue	Through Hole	20 mA	465 nm	OVAL	5 mm
Cree LED C5SMF-AJN-CT0U0341	Oval with Domed Top	40 °	100 °	Clear	Amber	5 mm	Radial	Standard		2.1 V	7 mm	1615 mcd	5.1 mm	3.7 mm	Amber	Through Hole	20 mA	591 nm
Cree LED C5SMF-GJE-CV14Q7S2	Oval with Domed Top	40 °	100 °	Clear	Green		Radial	Standard	527 nm	3.4 V	8.5 mm	2860 mcd	5.1 mm	3.7 mm	Green	Through Hole	20 mA		OVAL	5 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Box (TB)	2500	$ 0.21
Newark	Each	2500	$ 0.19

Description

General part information

C5SMF Series

Blue 465nm LED Indication - Discrete 3.4V Radial
