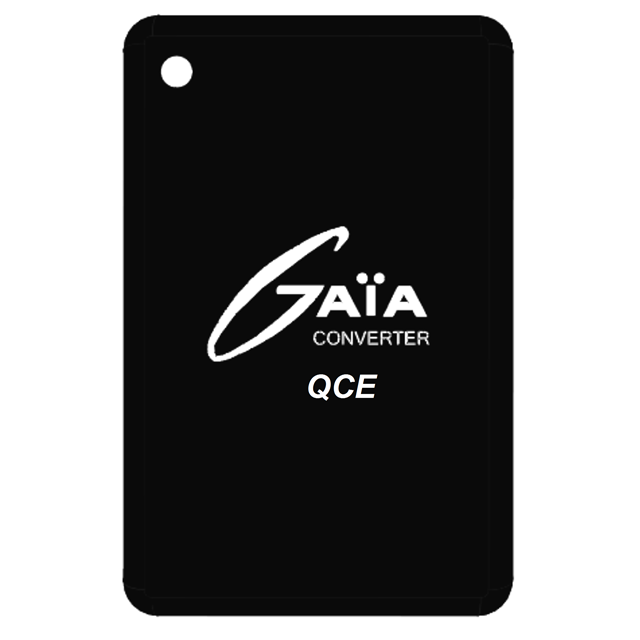

MGDBK10QE

Active

Gaia Converter

DC DC CONVERTER

Search across all available documentation for this part.

Active

Gaia Converter

DC DC CONVERTER

Technical Specifications

Parameters and characteristics for this part

Part	Efficiency	Power (Watts)	Voltage - Isolation	Voltage - Output 1	Voltage - Input (Min) [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Mounting Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Current - Output (Max)	Current - Output (Max)	Features	Voltage - Input (Max) [Max]	Number of Outputs	Voltage - Output 2	Type	Package / Case	Package / Case	Current - Output (Max) [Max]
Gaia Converter MGDBK10DF	80 %	10 W	1.5 kV	15 V	4.5 V	-40 °C	203 °F	ITE (Commercial)	Through Hole	1.57 in	26 mm	0.32 "	1.02 "	40 mm	8.2 mm	330 mA	330 mA	Remote On/Off	16 V	2	-15 V	Isolated Module	5 Leads 8-DIP Module
Gaia Converter MGDBK10QE	80 %	10 W	1.5 kV	12 V	36 V	-40 °C	203 °F	ITE (Commercial)	Through Hole	1.57 in	26 mm	0.32 "	1.02 "	40 mm	8.2 mm				160 V	1		Isolated Module	8-DIP Module	4 Lead	800 mA
Gaia Converter MGDBK10DC	80 %	10 W	1.5 kV	5 V	4.5 V	-40 °C	203 °F	ITE (Commercial)	Through Hole	1.57 in	26 mm	0.32 "	1.02 "	40 mm	8.2 mm	1 A	1 A	Remote On/Off	16 V	2	-5 V	Isolated Module	5 Leads 8-DIP Module
Gaia Converter MGDBK10QC	80 %	10 W	1.5 kV	5 V	36 V	-40 °C	203 °F	ITE (Commercial)	Through Hole	1.57 in	26 mm	0.32 "	1.02 "	40 mm	8.2 mm	1 A	1 A		160 V	2	-5 V	Isolated Module	8-DIP Module	4 Lead
Gaia Converter MGDBK10QE/Y	80 %	10 W	1.5 kV	12 V	36 V	-40 °C	203 °F	ITE (Commercial)	Through Hole	1.57 in	26 mm	0.32 "	1.02 "	40 mm	8.2 mm				160 V	1		Isolated Module	8-DIP Module	4 Lead	800 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Isolated Module DC DC Converter 1 Output 12V 800mA 36V - 160V Input
