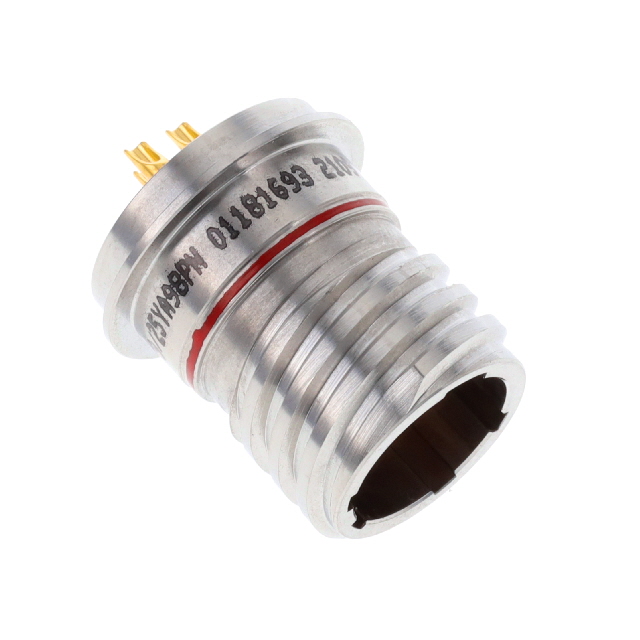

D38999/25YA98PN

Active

Amphenol Aerospace Operations

HERMETIC CIRCULAR MIL-SPEC CONNE

Search across all available documentation for this part.

Active

Amphenol Aerospace Operations

HERMETIC CIRCULAR MIL-SPEC CONNE

Technical Specifications

Parameters and characteristics for this part

Specification	D38999/25YA98PN

Applications	Aviation, Aerospace, Marine, Military
Color	Silver
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	1.27 µm
Contact Finish Thickness - Mating	50 µin
Contact Material	Copper Alloy
Grade	Military
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-65 ░C
Orientation	N
Primary Material	Metal
Qualification	MIL-DTL-38999 Series III
Shell Finish	Passivated
Shell Material	Stainless Steel
Shell Size - Insert [Max]	98
Shell Size - Insert [Min]	9
Shell Size, MIL	A
Shielding	Unshielded
Voltage Rating	600 VAC, 850 V

Part	Connector Type	Qualification	Primary Material	Shell Size, MIL	Shell Finish	Shell Material	Shielding	Grade	Contact Material	Orientation	Contact Finish - Mating	Color	Applications	Operating Temperature [Min]	Operating Temperature [Max]	Shell Size - Insert [Max]	Shell Size - Insert [Min]	Voltage Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating
Amphenol Aerospace Operations D38999/25YA98PN	Male Pins Receptacle	MIL-DTL-38999 Series III	Metal	A	Passivated	Stainless Steel	Unshielded	Military	Copper Alloy	N	Gold	Silver	Aerospace Aviation Marine Military	-65 ░C	200 °C	98	9	600 VAC 850 V	1.27 µm	50 µin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 Position Circular Connector Receptacle, Male Pins Solder Cup
