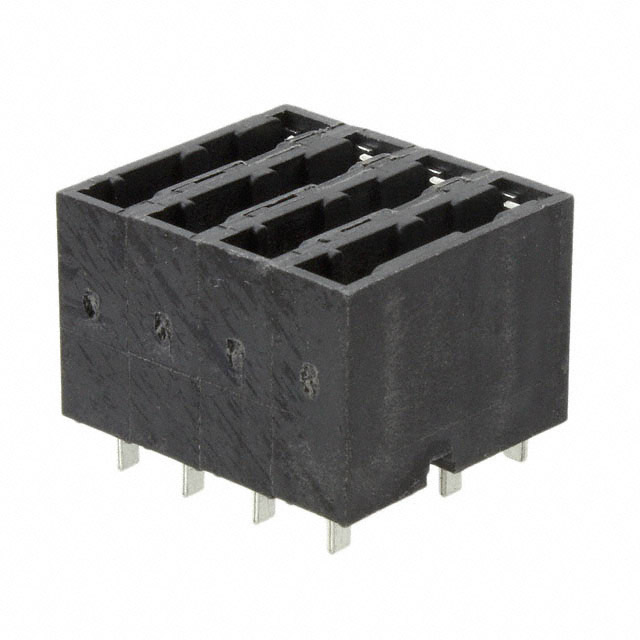

04820004ZXBF

Active

Littelfuse/Commercial Vehicle Products

ACS ALARM HLDR PCB MT FLUSH 4 POLE/ BULK ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Littelfuse/Commercial Vehicle Products

ACS ALARM HLDR PCB MT FLUSH 4 POLE/ BULK ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	04820004ZXBF

Contact Finish	Tin
Contact Material	Beryllium Copper
Current Rating (Amps)	15 A
For Use With/Related Products	481 Alarm Fuse
Fuse Size [x]	0.665 "
Fuse Size [x]	16.9 mm
Fuse Size [y]	0.315 "
Fuse Size [y]	8 mm
Fuse Size [z]	0.772 "
Fuse Size [z]	19.6 mm
Fuse Type	Blade
Fuseholder Type	Holder
Mounting Type	Through Hole
Number of Circuits	4
Orientation	Vertical
Termination Style	PC Pin
Voltage	125 V

ACS ALARM HLDR PCB MT FLUSH 4 POLE

Part	Fuse Size [x]	Fuse Size [z]	Fuse Size [y]	Fuse Size [z]	Fuse Size [x]	Fuse Size [y]	Contact Material	Fuseholder Type	Voltage	Orientation	Fuse Type	Mounting Type	Contact Finish	Termination Style	For Use With/Related Products	Number of Circuits	Current Rating (Amps)
Littelfuse/Commercial Vehicle Products 04820004ZXBF	0.665 "	0.772 "	0.315 "	19.6 mm	16.9 mm	8 mm	Beryllium Copper	Holder	125 V	Vertical	Blade	Through Hole	Tin	PC Pin	481 Alarm Fuse	4	15 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

ACS ALARM HLDR PCB MT FLUSH 4 POLE

Technical documentation and resources
