Z-15EWR

Active

Omron Electronics Inc-EMC Div

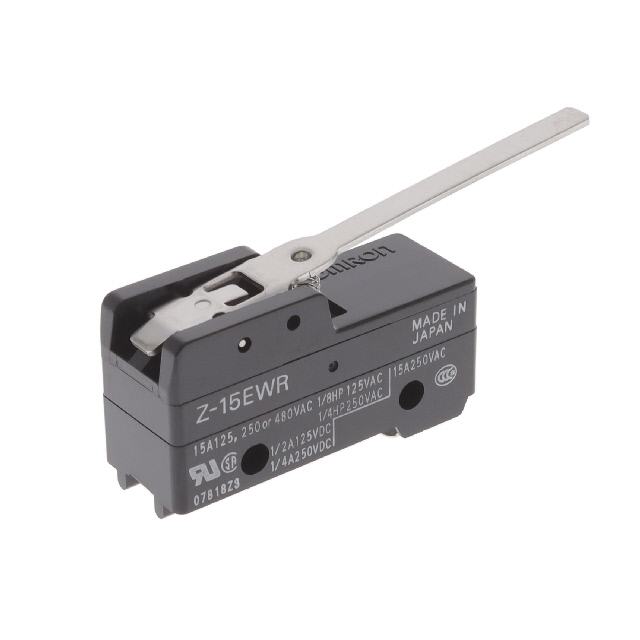

SWITCH SNAP ACTION SPDT 15A 125V

Search across all available documentation for this part.

Active

Omron Electronics Inc-EMC Div

SWITCH SNAP ACTION SPDT 15A 125V

Technical Specifications

Parameters and characteristics for this part

Part	Circuit	Overtravel	Overtravel	Mounting Type	Operating Position	Operating Position	Release Force [Max]	Release Force [Min]	Electrical Life	Current Rating (Amps)	Features	Mechanical Life	Pretravel	Pretravel	Operating Temperature [Min]	Operating Temperature [Max]	Operating Force [Min]	Operating Force [Max]	Termination Style	Ingress Protection	Voltage Rating - DC	Actuator Type	Voltage Rating - AC	Switch Function	Differential Travel	Differential Travel	Release Force	Operating Force
Omron Electronics Inc-EMC Div Z-15ER	SPDT	0.13 mm	0.005 in	Chassis Mount	0.625 in	15.9 mm	285 gf	56 gf	100000 Cycles	15 A	Reset Plunger on Bottom	300000 Cycles	0.015 in	0.4 mm	-25 °C	80 C	200 gf	255 gf	Solder Lug	IP00	30 V	Round (Pin Plunger)	125 V	On-On
Omron Electronics Inc-EMC Div Z-15EQ22-B	SPDT	3.6 mm	0.141 in		1.313 in	33.4 mm			100000 Cycles	15 A		300000 Cycles	0.03 in	0.8 mm	-25 °C	80 C	625 gf	800 gf	Screw Terminal	IP00	30 V	Roller Plunger	125 V	On-Mom	0.13 mm	0.005 in	114 gf
Omron Electronics Inc-EMC Div Z-15EWR	SPDT	5.6 mm	0.219 in	Chassis Mount	0.748 "	19 mm			100000 Cycles	15 A	Reset Plunger on Bottom	300000 Cycles			-25 °C	80 C			Solder Lug	IP00	30 V	Lever Straight	125 V	On-On			300 gf	55 gf
Omron Electronics Inc-EMC Div Z-15EW22R	SPDT			Chassis Mount						15 A					-25 °C	80 C			Solder Lug	IP00	30 V	Lever Roller	125 V	On-Mom
