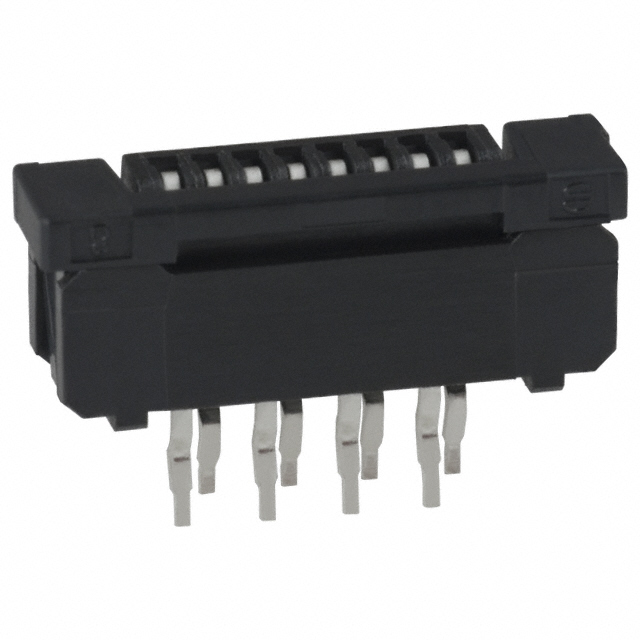

SLW8S-1C7

Obsolete

Amphenol ICC (FCI)

CONN FFC FPC VERT 8POS 1MM PCB

Search across all available documentation for this part.

Obsolete

Amphenol ICC (FCI)

CONN FFC FPC VERT 8POS 1MM PCB

Technical Specifications

Parameters and characteristics for this part

Specification	SLW8S-1C7

Actuator Color	Black
Actuator Material	Glass Filled, Polyamide (PA), Nylon
Cable End Type	Tapered, Straight
Connector/Contact Type	Contacts, Vertical - 1 Sided
Contact Finish	Tin Alloy
Contact Material	Phosphor Bronze
FFC, FCB Thickness [z]	0.33 mm, 0.3 mm
Flat Flex Type	FPC, FFC
Height Above Board	5.5 mm
Height Above Board	0.217 in
Housing Color	Black
Housing Material	Polyamide (PA), Nylon, Glass Filled
Locking Feature	Slide Lock
Material Flammability Rating	UL94 V-0
Mating Cycles	20
Mounting Type	Through Hole
Number of Positions	8
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.039 in
Pitch [x]	1 mm
Termination	Kinked Pin
Voltage Rating	100 V

Part	Locking Feature	Housing Material	Cable End Type	Height Above Board [z]	Height Above Board [z]	Actuator Material	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Color	Contact Material	Contact Finish	Number of Positions	FFC, FCB Thickness	Mounting Type	Termination	Housing Color	Pitch [x]	Pitch [x]	Material Flammability Rating	Voltage Rating	Flat Flex Type	Connector/Contact Type	Height Above Board	Height Above Board	FFC, FCB Thickness [z]	Mating Cycles
Amphenol ICC (FCI) SLW8R-5A7LF	Slide Lock	Polyamide (PA) Nylon Glass Filled	Tapered	4 mm	0.157 "	Glass Filled Nylon Polyamide (PA)	85 °C	-55 °C	Black	Phosphor Bronze	Tin	8	0.3 mm	Through Hole Right Angle	Kinked Pin	Black	0.039 in	1 mm	UL94 V-0	100 V	CIC	Contacts Bottom
Amphenol ICC (FCI) SLW8S-1C7	Slide Lock	Polyamide (PA) Nylon Glass Filled	Straight Tapered			Glass Filled Nylon Polyamide (PA)	105 ░C	-55 °C	Black	Phosphor Bronze	Tin Alloy	8		Through Hole	Kinked Pin	Black	0.039 in	1 mm	UL94 V-0	100 V	FFC FPC	Contacts Vertical - 1 Sided	5.5 mm	0.217 in	0.3 mm 0.33 mm	20
Amphenol ICC (FCI) SLW8R-5C7LF	Slide Lock	Polyamide (PA) Nylon Glass Filled	Tapered	4 mm	0.157 "	Glass Filled Nylon Polyamide (PA)	85 °C	-55 °C	White	Phosphor Bronze	Tin	8	0.3 mm	Through Hole Right Angle	Kinked Pin	Black	0.039 in	1 mm	UL94 V-0	100 V	CIC	Contacts Bottom				20

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

8 Position FFC, FPC Connector Contacts, Vertical - 1 Sided 0.039" (1.00mm) Through Hole
