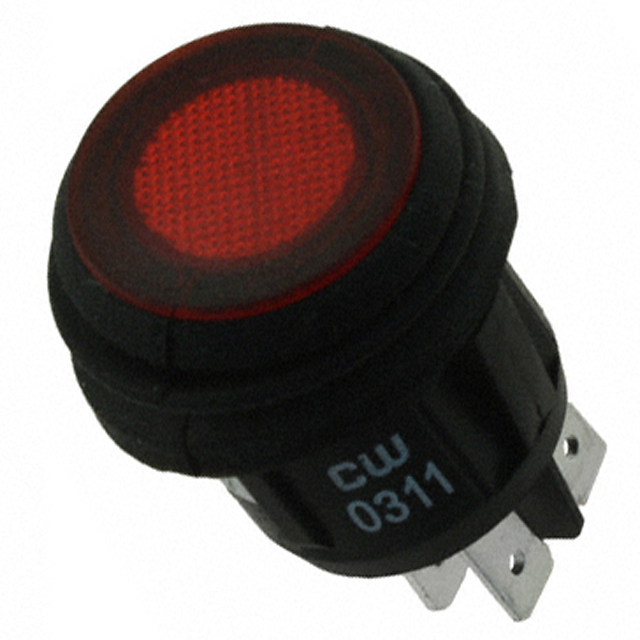

GRB244B802BR1

Active

CW Industries

SWITCH ROCKER DPST 16A 125V

Search across all available documentation for this part.

Active

CW Industries

SWITCH ROCKER DPST 16A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	GRB244B802BR1

Actuator Marking	No Marking
Actuator Type	Round - Illuminated
Approval Agency	cULus
Circuit	DPST
Color - Actuator/Cap	Red
Current Rating (Amps)	16 A, 20 A
Illumination Type, Color	Red, LED
Illumination Voltage (Nominal)	12 VDC
Ingress Protection	IP65 - Dust Tight, Water Resistant
Mechanical Life	100000 Cycles
Mounting Type	Panel Mount, Snap-In
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	20.2 mm
Switch Function	On-Off
Termination Style	Quick Connect - 0.187" (4.7mm)
Voltage Rating - AC	125 V
Voltage Rating - DC	12 V

Part	Illumination Type, Color	Ingress Protection	Actuator Marking	Illumination Voltage (Nominal)	Mechanical Life	Switch Function	Color - Actuator/Cap	Approval Agency	Circuit	Termination Style	Panel Cutout Dimensions [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating - DC	Actuator Type	Mounting Type	Current Rating (Amps)	Voltage Rating - AC
CW Industries GRB244B802BR1	LED Red	IP65 - Dust Tight Water Resistant	No Marking	12 VDC	100000 Cycles	On-Off	Red	cULus	DPST	Quick Connect - 0.187" (4.7mm)	20.2 mm	-25 °C	85 °C	12 V	Round - Illuminated	Panel Mount Snap-In	16 A 20 A	125 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Rocker Switch DPST 16A (AC), 20A (DC) 125 V Panel Mount, Snap-In
