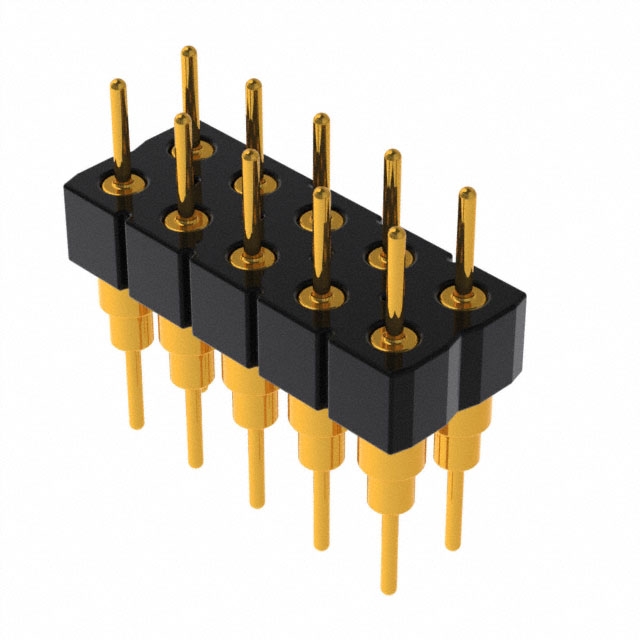

BBD-105-G-A

Active

Samtec Inc.

CONN HEADER VERT 10POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet BBD Datasheet +1

BBD-105-G-A

Active

Samtec Inc.

CONN HEADER VERT 10POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet BBD Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BBD-105-G-A

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Nickel
Contact Finish Thickness - Mating	0.51 µm
Contact Finish Thickness - Mating	20 µin
Contact Finish Thickness - Post	1.27 µm
Contact Finish Thickness - Post	50 µin
Contact Length - Mating	0.125 in
Contact Length - Mating	3.18 mm
Contact Length - Post [x]	3.18 mm
Contact Length - Post [x]	0.125 in
Contact Shape	Circular
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height [z]	5.35 mm
Insulation Height [z]	0.211 in
Insulation Material	Polyester, Glass Filled
Mounting Type	Through Hole
Number of Positions	10
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Overall Contact Length	11.68 mm
Overall Contact Length	0.46 "
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Unshrouded
Termination	Solder

BBD-105 Series

Part	Contact Finish - Post	Insulation Height	Insulation Height	Contact Length - Post [x]	Contact Length - Post [x]	Contact Type	Contact Shape	Contact Finish - Mating	Fastening Type	Connector Type	Pitch - Mating	Pitch - Mating	Shrouding	Mounting Type	Insulation Material	Number of Positions Loaded	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Number of Positions	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Length - Mating	Contact Length - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Rows	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Insulation Color	Insulation Height [z]	Insulation Height [z]	Overall Contact Length	Overall Contact Length
Samtec Inc. BBD-105-G-D	Nickel	0.835 "	21.21 mm	3.18 mm	0.125 in	Male Pin	Circular	Gold	Push-Pull	Header	0.1 in	2.54 mm	Unshrouded	Through Hole	Polyester Glass Filled	All	-55 °C	125 °C	Solder	10	1.27 µm	50 µin	0.125 in	3.18 mm	0.51 µm	20 µin	2	2.54 mm	0.1 in	Black
Samtec Inc. BBD-105-G-A	Nickel			3.18 mm	0.125 in	Male Pin	Circular	Gold	Push-Pull	Header	0.1 in	2.54 mm	Unshrouded	Through Hole	Polyester Glass Filled	All	-55 °C	125 °C	Solder	10	1.27 µm	50 µin	0.125 in	3.18 mm	0.51 µm	20 µin	2	2.54 mm	0.1 in	Black	5.35 mm	0.211 in	11.68 mm	0.46 "
Samtec Inc. BBD-105-G-G	Nickel	0.585 in	14.86 mm	3.18 mm	0.125 in	Male Pin	Circular	Gold	Push-Pull	Header	0.1 in	2.54 mm	Unshrouded	Through Hole	Polyester Glass Filled	All	-55 °C	125 °C	Solder	10	1.27 µm	50 µin	0.125 in	3.18 mm	0.51 µm	20 µin	2	2.54 mm	0.1 in	Black			21.21 mm	0.835 in
Samtec Inc. BBD-105-G-C	Nickel	0.585 in	14.86 mm	3.18 mm	0.125 in	Male Pin	Circular	Gold	Push-Pull	Header	0.1 in	2.54 mm	Unshrouded	Through Hole	Polyester Glass Filled	All	-55 °C	125 °C	Solder	10	1.27 µm	50 µin	0.125 in	3.18 mm	0.51 µm	20 µin	2	2.54 mm	0.1 in	Black			21.21 mm	0.835 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 7.55
		10	$ 5.78
		100	$ 4.49
		500	$ 3.80
		1000	$ 3.55
