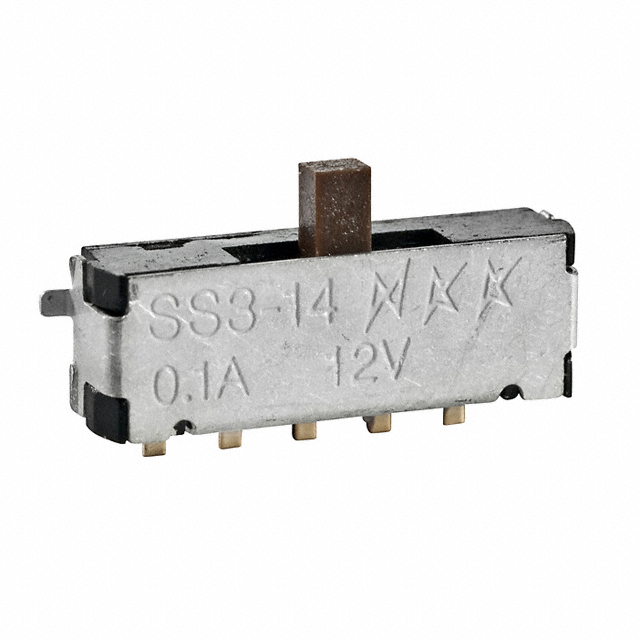

SS314MAH4

Active

NKK Switches

SLIDE SWITCH, SPDT, ON-OFF-ON, SURFACE MOUNT, 100 MA, 28 V

Search across all available documentation for this part.

Active

NKK Switches

SLIDE SWITCH, SPDT, ON-OFF-ON, SURFACE MOUNT, 100 MA, 28 V

Technical Specifications

Parameters and characteristics for this part

Part	Mechanical Life	Actuator Length [x]	Termination Style	Circuit	Electrical Life	Switch Travel	Actuator Type	Contact Timing	Mounting Type	Voltage Rating - AC	Contact Finish	Actuator Material	Switch Function	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Voltage Rating - DC	Current Rating (Amps)
NKK Switches SS314MAH4	10000 Steps	2 mm	Gull Wing	SPDT	10000 Cycles	2 mm	Standard	Non-Shorting	Surface Mount Right Angle	28 V	Gold	Polyphenylene Sulfide (PPS)	On-Off-On/On-On-On	-25 °C	85 °C	Phosphor Bronze	28 V	0.4 VA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Slide Switch SPDT Surface Mount, Right Angle
