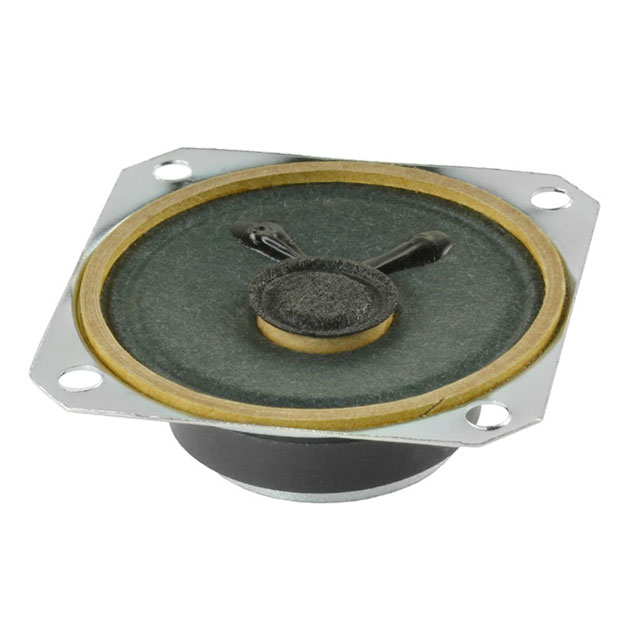

CSS-50508N

Active

CUI Devices

SPEAKER 8OHM 250MW TOP PORT 85DB

Search across all available documentation for this part.

Active

CUI Devices

SPEAKER 8OHM 250MW TOP PORT 85DB

Technical Specifications

Parameters and characteristics for this part

Part	Port Location	Power - Max [Max]	Efficiency - dBA	Termination	Efficiency - Testing	Frequency - Self Resonant	Shape	Impedance	Power - Rated	Type	Efficiency - Type	Technology	Material - Cone	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Material - Magnet	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Frequency Range [Min]	Frequency Range [Max]
CUI Devices CSS-50508N	Top	500 mW	85 dBA	Solder Eyelet(s)	250 mW 500 mm	380 Hz	Round Square Frame	8 Ohms	0.25 W	General Purpose	Sound Pressure Level (SPL)	Magnetic	Paper	17.2 mm	0.677 in	Nd-Fe-B	1.988 in	50.5 mm	1.988 in	50.5 mm	304 Hz	3.2 kHz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	500	$ 1.89

General part information

8 Ohms General Purpose Speaker 250 mW 304 Hz ~ 3.2 kHz Top Round, Square Frame
