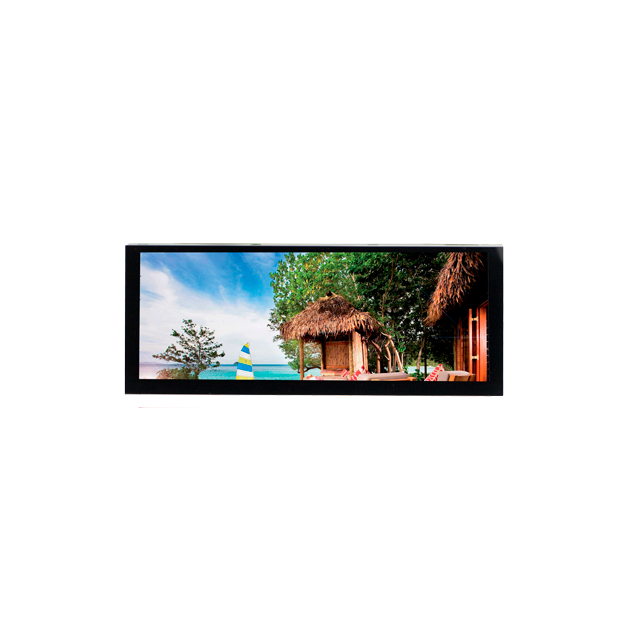

ATM0680L2A-CT

Obsolete

AZ Displays

6.8" IPS LCD 480 X 1280 W/ PCAP

Search across all available documentation for this part.

Obsolete

AZ Displays

6.8" IPS LCD 480 X 1280 W/ PCAP

Technical Specifications

Parameters and characteristics for this part

Specification	ATM0680L2A-CT

Background Color	White
Backlight	LED
Diagonal Screen Size	172.72 mm
Diagonal Screen Size	6.8 in
Display Mode	Transmissive
Display Type	TFT - Color, IPS (In-Plane Switching)
Dot Pitch [y]	0.04 mm
Dot Pitch [z]	0.13 mm
Dot Pixels [x]	480
Dot Pixels [y]	1280
Dot Size [x]	0.13 mm
Dot Size [y]	0.13 mm
Graphics Color	Green, Red, Blue
Interface	MIPI
Touchscreen	Capacitive
Viewing Area [x]	60.22 mm
Viewing Area [y]	160.59 mm

Part	Interface	Graphics Color	Dot Pitch [y]	Dot Pitch [z]	Display Type	Background Color	Viewing Area [y]	Viewing Area [x]	Display Mode	Backlight	Dot Size [x]	Dot Size [y]	Dot Pixels [x]	Dot Pixels [y]	Diagonal Screen Size	Diagonal Screen Size	Touchscreen	Viewing Area [z]	Controller Type
AZ Displays ATM0680L2A-CT	MIPI	Blue Green Red	0.04 mm	0.13 mm	TFT - Color IPS (In-Plane Switching)	White	160.59 mm	60.22 mm	Transmissive	LED	0.13 mm	0.13 mm	480	1280	172.72 mm	6.8 in	Capacitive
AZ Displays ATM0680L3B	LVDS	Blue Green Red	0.04 mm	0.13 mm	TFT - Color IPS (In-Plane Switching)	Black	160.51 mm		Transmissive	LED			480	1280	174.24 mm	6.9 in		60.19 mm	NV3051F1
AZ Displays ATM0680L3B-CT	LVDS	Blue Green Red	0.04 mm	0.13 mm	TFT - Color IPS (In-Plane Switching)	Black	61.92 mm	162.49 mm	Transmissive	LED			480	1280	174.24 mm	6.9 in	Capacitive		NV3051F1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Capacitive Graphic LCD Display Module Transmissive Red, Green, Blue (RGB) TFT - Color, IPS (In-Plane Switching) MIPI 6.8" (172.72mm) 480 x 1280
