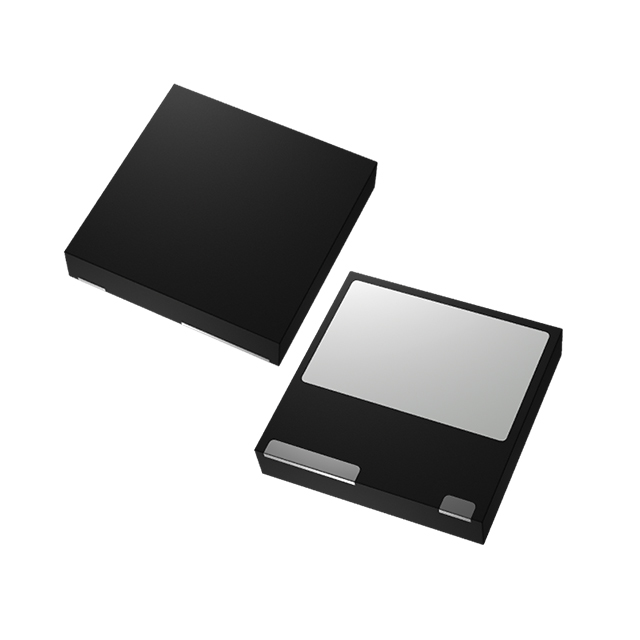

TPH3206LS
ObsoleteTransphorm
GANFET N-CH 600V 17A PQFN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TPH3206LS
ObsoleteTransphorm
GANFET N-CH 600V 17A PQFN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TPH3206LS |
|---|---|
| Current - Continuous Drain (Id) @ 25°C | 17 A |
| Drain to Source Voltage (Vdss) | 600 V |
| Drive Voltage (Max Rds On, Min Rds On) | 10 V |
| FET Type | N-Channel |
| Gate Charge (Qg) (Max) @ Vgs | 9.3 nC |
| Input Capacitance (Ciss) (Max) @ Vds | 760 pF |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 175 ░C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 3-PowerDFN |
| Power Dissipation (Max) | 96 W |
| Rds On (Max) @ Id, Vgs | 180 mOhm |
| Supplier Device Package | 3-PQFN (8x8) |
| Technology | GaNFET (Gallium Nitride) |
| Vgs (Max) | 18 V |
| Vgs(th) (Max) @ Id | 2.6 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
TPH3206LS
N-Channel 600 V 17A (Tc) 96W (Tc) Surface Mount 3-PQFN (8x8)
