BNC-BPR-3(40)

Active

Hirose Electric USA, Inc.

CONN BNC PLUG STR 50 OHM SOLDER

Search across all available documentation for this part.

Active

Hirose Electric USA, Inc.

CONN BNC PLUG STR 50 OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	BNC-BPR-3(40)

Body Finish	Nickel
Body Material	Brass
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	BNC
Connector Type	Male Pin, Plug
Contact Termination	Solder Cup
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	4 GHz
Housing Color	Silver
Impedance	50 Ohms

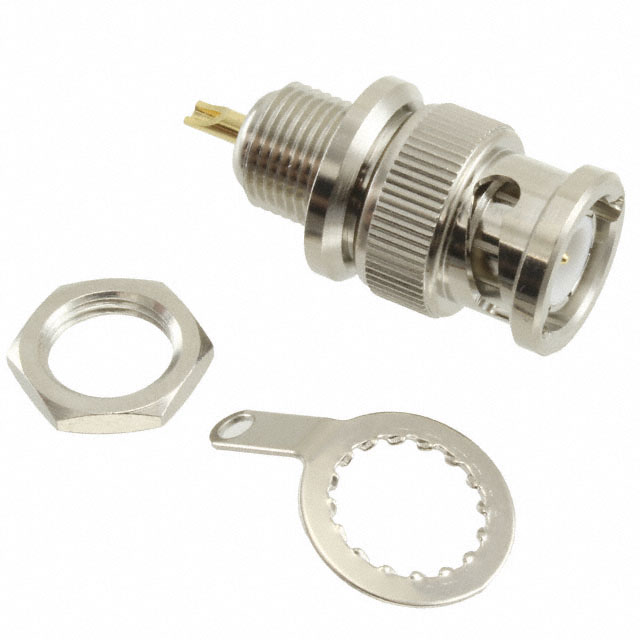

Includes	1 Connector, 1 Solder Tag, 1 Nut
Mating Cycles	1000
Mounting Feature	Bulkhead - Rear Side Nut
Number of Ports	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Solder Tag

Part	Number of Ports	Fastening Type	Connector Type	Housing Color	Mating Cycles	Connector Style	Center Contact Material	Body Finish	Operating Temperature [Max]	Operating Temperature [Min]	Impedance	Shield Termination	Frequency - Max [Max]	Mounting Feature	Dielectric Material	Contact Termination	Body Material	Center Contact Plating	Includes
Hirose Electric USA, Inc. BNC-BPR-3(40)	1	Bayonet Lock	Male Pin Plug	Silver	1000	BNC	Brass	Nickel	85 °C	-55 °C	50 Ohms	Solder Tag	4 GHz	Bulkhead - Rear Side Nut	Polytetrafluoroethylene (PTFE)	Solder Cup	Brass	Gold	1 Connector 1 Nut 1 Solder Tag

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

BNC Connector Plug, Male Pin 50 Ohms Panel Mount Solder Cup
