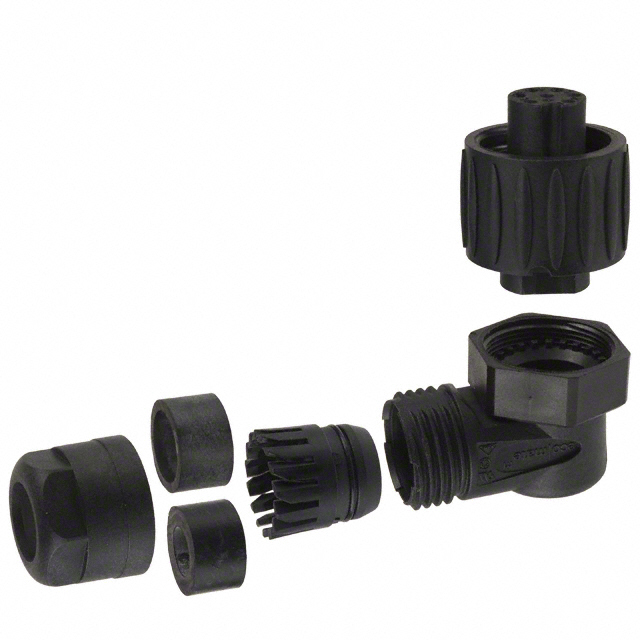

C01610F00600012

Active

Amphenol Tuchel Industrial

CONN PLUG HSNG FMALE 7POS R/A

Search across all available documentation for this part.

Active

Amphenol Tuchel Industrial

CONN PLUG HSNG FMALE 7POS R/A

Technical Specifications

Parameters and characteristics for this part

Specification	C01610F00600012

Connector Type	Plug Housing
Contact Shape	Circular
Contact Size	1.6 mm
Contact Type	Crimp
Features	Coupling Nut, Backshell
Housing Color	Black, Blue
Ingress Protection	IP67, IP65
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line), Right Angle
Note	Contacts Not Included
Number of Positions [custom]	1
Number of Positions [custom]	6
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Shell Material	Polyamide (PA66), Nylon 6/6
Shielding	Unshielded
Type	For Female Sockets

Part	Number of Positions [custom]	Number of Positions [custom]	Connector Type	Material Flammability Rating	Mounting Type	Note	Operating Temperature [Max]	Operating Temperature [Min]	Housing Color	Shielding	Contact Shape	Orientation	Contact Size	Ingress Protection	Shell Material	Features	Type	Contact Type
Amphenol Tuchel Industrial C01610F00600012	1	6	Plug Housing	UL94 V-0	Free Hanging (In-Line) Right Angle	Contacts Not Included	125 °C	-40 °C	Black Blue	Unshielded	Circular	Keyed	1.6 mm	IP65 IP67	Polyamide (PA66) Nylon 6/6	Backshell Coupling Nut	For Female Sockets	Crimp

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

7 (6 + PE) Position Circular Connector Plug Housing Free Hanging (In-Line), Right Angle Backshell, Coupling Nut
