05S132-S00S3

Active

Rosenberger

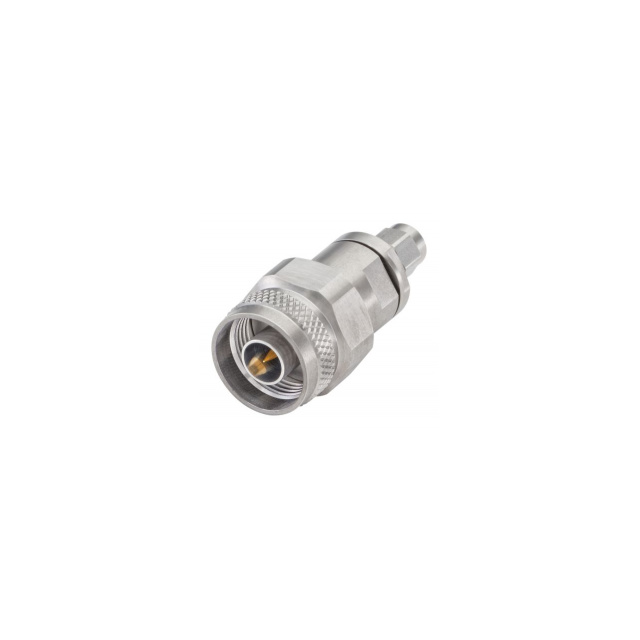

PRECISION N TYPE ADAPTER

Search across all available documentation for this part.

Active

Rosenberger

PRECISION N TYPE ADAPTER

Technical Specifications

Parameters and characteristics for this part

Specification	05S132-S00S3

Adapter Series	RJC-N to SMA
Adapter Type	Plug to Plug
Body Material	Stainless Steel
Center Contact Material	Brass, Beryllium Copper
Center Contact Plating	Gold
Center Gender	Male to Male
Conversion Type	Between Series
Convert From (Adapter End)	N Plug, Male Pin
Convert To (Adapter End)	TNC Plug, Male Pin
Dielectric Material	Polyphenylene Ether (PPE), Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	18 GHz
Impedance	50 Ohms
Insertion Loss	0.42 dB
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Style	Straight

Part	Operating Temperature [Max]	Operating Temperature [Min]	Center Gender	Insertion Loss	Mounting Type	Dielectric Material	Mating Cycles	Frequency - Max [Max]	Convert To (Adapter End)	Body Material	Conversion Type	Center Contact Material	Center Contact Plating	Adapter Series	Style	Adapter Type	Impedance	Convert From (Adapter End)
Rosenberger 05S132-S00S3	85 °C	-40 °C	Male to Male	0.42 dB	Free Hanging (In-Line)	Polyphenylene Ether (PPE) Polytetrafluoroethylene (PTFE)	500	18 GHz	Male Pin TNC Plug	Stainless Steel	Between Series	Beryllium Copper Brass	Gold	RJC-N to SMA	Straight	Plug to Plug	50 Ohms	N Plug Male Pin
Rosenberger 05S132-K00S3	85 °C	-40 °C		0.42 dB	Free Hanging (In-Line)	Polyphenylene Ether (PPE) Polytetrafluoroethylene (PTFE)	500	18 GHz	Female Socket TNC Jack	Stainless Steel	Between Series	Beryllium Copper Brass	Gold	RPC-N SMA	Straight	Plug to Jack	50 Ohms	N Plug Male Pin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	5	$ 225.19

General part information

Adapter Coaxial Connector N Plug, Male Pin To TNC Plug, Male Pin 50 Ohms
