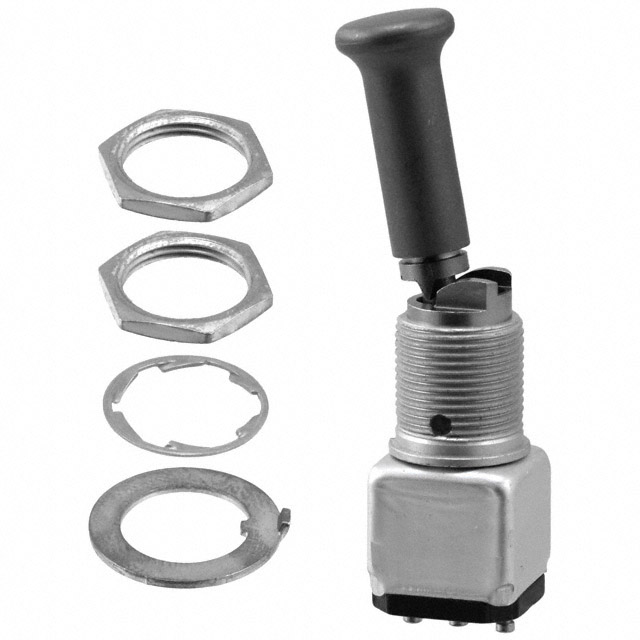

11TW8-3G

Active

Honeywell Sensing and Productivity Solutions

SWITCH TOGGLE SPDT 5A 125V

Search across all available documentation for this part.

Active

Honeywell Sensing and Productivity Solutions

SWITCH TOGGLE SPDT 5A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	11TW8-3G

Actuator Length [x]	29.46 mm
Actuator Type	Locking Lever
Bushing Thread	15/32-32
Circuit	SPDT
Current Rating (Amps)	5 A
Illumination	Non-Illuminated
Ingress Protection	Environment Sealed
Operating Temperature [Max]	71 °C
Operating Temperature [Min]	-65 ░C
Panel Cutout Dimensions [diameter]	12.4 mm
Switch Function	On-On
Termination Style	Solder Turret
Voltage Rating - AC	125 V
Voltage Rating - DC	28 V

Part	Circuit	Actuator Length [x]	Ingress Protection	Voltage Rating - DC	Illumination	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Voltage Rating - AC	Termination Style	Bushing Thread	Switch Function	Actuator Type	Panel Cutout Dimensions [diameter]
Honeywell Sensing and Productivity Solutions 11TW8-3G	SPDT	29.46 mm	Environment Sealed	28 V	Non-Illuminated	71 °C	-65 ░C	5 A	125 V	Solder Turret	15/32-32	On-On	Locking Lever	12.4 mm
Honeywell Sensing and Productivity Solutions 11TW8-3	SPDT	17.27 mm	Environment Sealed	28 V	Non-Illuminated	71 °C	-65 ░C	5 A	125 V	Solder Turret	15/32-32	On-On	Standard Round	12.4 mm
