9S0812L4021

Active

Sanyo Denki America Inc.

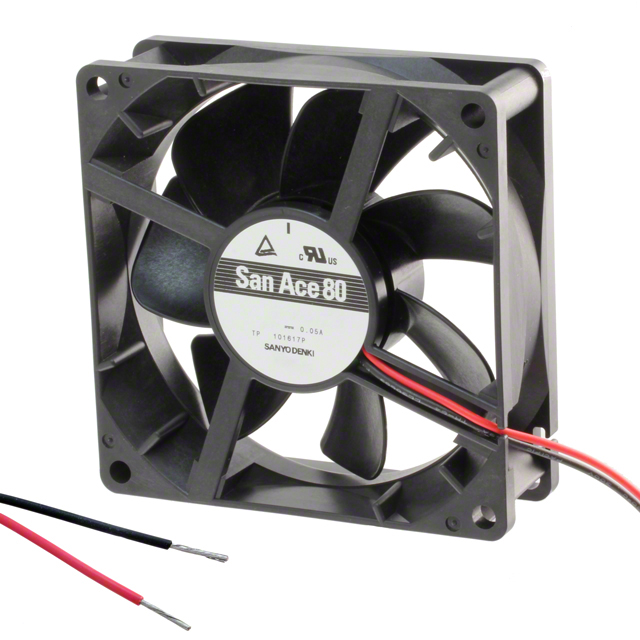

FAN AXIAL 80X25MM 12VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsRotor Balancing Numbering System DC Fan +1

9S0812L4021

Active

Sanyo Denki America Inc.

FAN AXIAL 80X25MM 12VDC WIRE

Deep-Dive with AI

DocumentsRotor Balancing Numbering System DC Fan +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	9S0812L4021

Air Flow	23.3 CFM
Air Flow	0.652 mł/min
Approval Agency	CSA, TUV, UL
Bearing Type	Ball
Current Rating (Amps)	50 mA
Fan Type	Tubeaxial
Lifetime @ Temp.	40000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	16 dB
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	600 mW
RPM	2000 RPM
Size / Dimension [x]	80 mm
Size / Dimension [y]	80 mm
Static Pressure	18.2 Pa
Static Pressure	0.073 in H2O
Termination	2 Wire Leads
Voltage - Rated	12 VDC
Voltage Range [Max]	13.8 VDC
Voltage Range [Min]	6 VDC
Weight	0.167 lb
Weight	75.75 g
Width [y]	25 mm

9S0812 Series

Part	Width [y]	Material - Frame	Static Pressure	Static Pressure	Size / Dimension [y]	Size / Dimension [x]	Bearing Type	Voltage - Rated	Termination	Current Rating (Amps)	Power (Watts)	Weight	Weight	Voltage Range [Max]	Voltage Range [Min]	Fan Type	Air Flow	Air Flow	Lifetime @ Temp.	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	RPM	Material - Blade	Features	Noise	Approval Agency
Sanyo Denki America Inc. 9S0812L4D01	25 mm	Plastic	18.2 Pa	0.073 in H2O	80 mm	80 mm	Ball	12 VDC	3 Wire Leads	50 mA	600 mW	0.167 lb	75.75 g	13.8 VDC	6 VDC	Tubeaxial	23.3 CFM	0.652 mł/min	40000 Hrs	70 °C	70 °C	-10 °C	-10 °C	2000 RPM	Plastic	Locked Rotor Sensor	16 dB	CSA TUV UL
Sanyo Denki America Inc. 9S0812F4D011	25 mm	Plastic	35.6 Pa	0.143 in H2O	80 mm	80 mm	Ball	12 VDC	3 Wire Leads	110 mA	1.32 W	0.167 lb	75.75 g	13.8 VDC	5 VDC	Tubeaxial	32.8 CFM	0.918 mł/min	40000 Hrs	70 °C	70 °C	-10 °C	-10 °C	2800 RPM	Plastic	Locked Rotor Sensor	24 dB	CSA TUV UL
Sanyo Denki America Inc. 9S0812F4D01	25 mm	Plastic	35.6 Pa	0.143 in H2O	80 mm	80 mm	Ball	12 VDC	3 Wire Leads	110 mA	1.32 W	0.167 lb	75.75 g	13.8 VDC	5 VDC	Tubeaxial	32.8 CFM	0.918 mł/min	40000 Hrs	70 °C	70 °C	-10 °C	-10 °C	2800 RPM	Plastic	Locked Rotor Sensor	24 dB	CSA TUV UL
Sanyo Denki America Inc. 9S0812H401	25 mm	Plastic	49.8 Pa	0.2 in H2O	80 mm	80 mm	Ball	12 VDC	3 Wire Leads	0.23 A	2.76 W	0.167 lb	75.75 g	13.2 VDC	5 VDC	Tubeaxial	39.5 CFM	1.11 m³/min	40000 Hrs	70 °C	70 °C	-10 °C	-10 °C	3400 RPM	Plastic	Locked Rotor Protection Speed Sensor (Tach)	31 dB(A)	CSA UL
Sanyo Denki America Inc. 9S0812F401	25 mm	Plastic	35.6 Pa	0.143 in H2O	80 mm	80 mm	Ball	12 VDC	3 Wire Leads	110 mA	1.32 W	0.167 lb	75.75 g	13.8 VDC	5 VDC	Tubeaxial	32.8 CFM	0.918 mł/min	40000 Hrs	70 °C	70 °C	-10 °C	-10 °C	2800 RPM	Plastic	Locked Rotor Protection Speed Sensor (Tach)	24 dB	CSA TUV UL
Sanyo Denki America Inc. 9S0812M402	25 mm	Plastic	27.4 Pa	0.11 in H2O	80 mm	80 mm	Ball	12 VDC	2 Wire Leads			0.167 lb	75.75 g	13.8 VDC	5 VDC	Tubeaxial	29.3 CFM	0.82 m³/min	40000 Hrs	70 °C	70 °C	-10 °C	-10 °C	2500 RPM	Plastic		22 dB(A)	CSA TUV UL
Sanyo Denki America Inc. 9S0812L4021	25 mm	Plastic	18.2 Pa	0.073 in H2O	80 mm	80 mm	Ball	12 VDC	2 Wire Leads	50 mA	600 mW	0.167 lb	75.75 g	13.8 VDC	6 VDC	Tubeaxial	23.3 CFM	0.652 mł/min	40000 Hrs	70 °C	70 °C	-10 °C	-10 °C	2000 RPM	Plastic		16 dB	CSA TUV UL
Sanyo Denki America Inc. 9S0812P4M01	25 mm	Plastic	27.4 Pa	0.11 in H2O	80 mm	80 mm	Ball	12 VDC	4 Wire Leads		1.32 W	0.167 lb	75.75 g	13.8 VDC	5 VDC	Tubeaxial	29.3 CFM	0.82 m³/min	40000 Hrs	70 °C	70 °C	-10 °C	-10 °C	2800 RPM	Plastic	Locked Rotor Protection PWM Control Speed Sensor (Tach)	22 dB(A)	CSA TUV UL
Sanyo Denki America Inc. 9S0812M4011	25 mm	Plastic	27.4 Pa	0.11 in H2O	80 mm	80 mm	Ball	12 VDC	3 Wire Leads			0.167 lb	75.75 g	13.8 VDC	5 VDC	Tubeaxial	29.3 CFM	0.82 m³/min	40000 Hrs	70 °C	70 °C	-10 °C	-10 °C	2500 RPM	Plastic	Locked Rotor Protection Speed Sensor (Tach)	22 dB(A)	CSA TUV UL
Sanyo Denki America Inc. 9S0812H4D011	25 mm	Plastic	49.8 Pa	0.2 in H2O	80 mm	80 mm	Ball	12 VDC	3 Wire Leads	0.23 A	2.76 W	0.167 lb	75.75 g	13.2 VDC	5 VDC	Tubeaxial	39.5 CFM	1.11 m³/min	40000 Hrs	70 °C	70 °C	-10 °C	-10 °C	3400 RPM	Plastic	Locked Rotor Sensor	31 dB(A)	CSA UL

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 14.23
		10	$ 13.59
		40	$ 12.78
		80	$ 12.29
		120	$ 11.32
		280	$ 10.60
		520	$ 10.43

Description

General part information

9S0812 Series

Fan Tubeaxial 12VDC Square - 80mm L x 80mm H Ball 23.3 CFM (0.652m³/min) 2 Wire Leads
