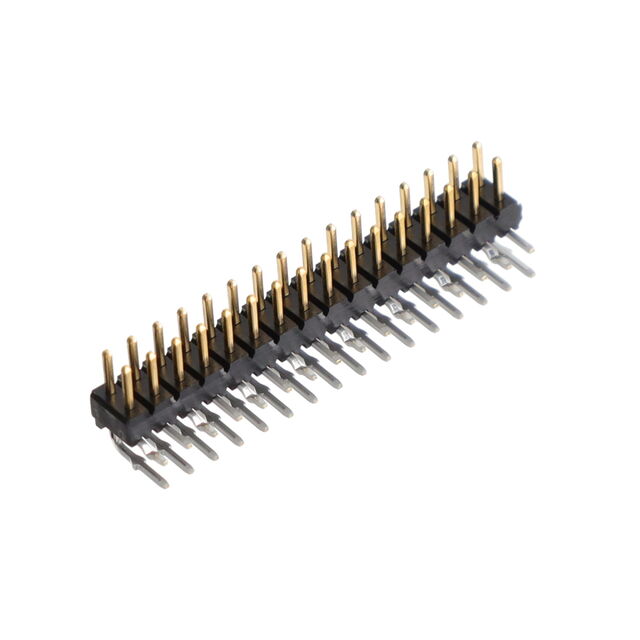

A3B-32PA-2DS(51)

Active

Hirose Electric USA, Inc.

CONN HEADER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

A3B-32PA-2DS(51)

Active

Hirose Electric USA, Inc.

CONN HEADER

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	A3B-32PA-2DS(51)

Connector Type	Header
Contact Finish - Mating	Gold
Contact Length - Mating	0.138 in
Contact Length - Mating	3.5 mm
Contact Length - Post	0.102 in
Contact Length - Post	2.6 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height [custom]	0.157 in
Insulation Height [custom]	4 mm
Insulation Material	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Kinked Pin, Solder

A3B-32PA Series

Part	Shrouding	Mated Stacking Heights	Termination	Contact Length - Mating	Contact Length - Mating	Contact Material	Fastening Type	Contact Type	Contact Finish - Mating	Insulation Material	Contact Finish - Post	Insulation Height	Insulation Height	Operating Temperature [Max]	Operating Temperature [Min]	Pitch - Mating [x]	Pitch - Mating [x]	Contact Finish Thickness - Mating	Row Spacing - Mating	Row Spacing - Mating	Number of Rows	Mounting Type	Connector Type	Insulation Color	Contact Shape	Contact Length - Post	Contact Length - Post	Number of Positions Loaded	Overall Contact Length	Overall Contact Length	Style	Material Flammability Rating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Height [custom]	Insulation Height [custom]
Hirose Electric USA, Inc. A3B-32PA-2DSA(71)	Unshrouded	6 mm 8.8 mm	Solder	0.138 in	3.5 mm	Brass	Push-Pull	Male Pin	Gold	Nylon Polyamide (PA)	Tin	1.8 mm	0.071 "	85 °C	-55 °C	0.079 in	2 mm	Flash	0.079 in	2 mm	2	Through Hole	Header	Black	Square	0.102 in	2.6 mm	All	7.9 mm	0.311 in	Board to Board Cable	UL94 V-0	2 çm	78.7 çin
Hirose Electric USA, Inc. A3B-32PA-2DS(51)	Unshrouded		Kinked Pin Solder	0.138 in	3.5 mm	Brass	Push-Pull	Male Pin	Gold	Nylon Polyamide (PA)				85 °C	-55 °C	0.079 in	2 mm		0.079 in	2 mm	2	Through Hole Right Angle	Header	Black	Square	0.102 in	2.6 mm	All			Board to Board Cable	UL94 V-0			0.157 in	4 mm
Hirose Electric USA, Inc. A3B-32PA-2DS(71)	Unshrouded		Kinked Pin Solder	0.138 in	3.5 mm	Brass	Push-Pull	Male Pin	Gold	Nylon Polyamide (PA)	Tin			85 °C	-55 °C	0.079 in	2 mm	Flash	0.079 in	2 mm	2	Through Hole Right Angle	Header	Black	Square	0.102 in	2.6 mm	All			Board to Board Cable	UL94 V-0			0.157 in	4 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.53
		50	$ 1.24
		100	$ 1.19
		500	$ 0.99
		1000	$ 0.85
		5000	$ 0.75
		10000	$ 0.74

Description

General part information

A3B-32PA Series

Connector Header Through Hole, Right Angle 32 position 0.079" (2.00mm)
