ALPHA7/3M/SMAM/SMAM/S/S/11
ActiveSiretta Ltd

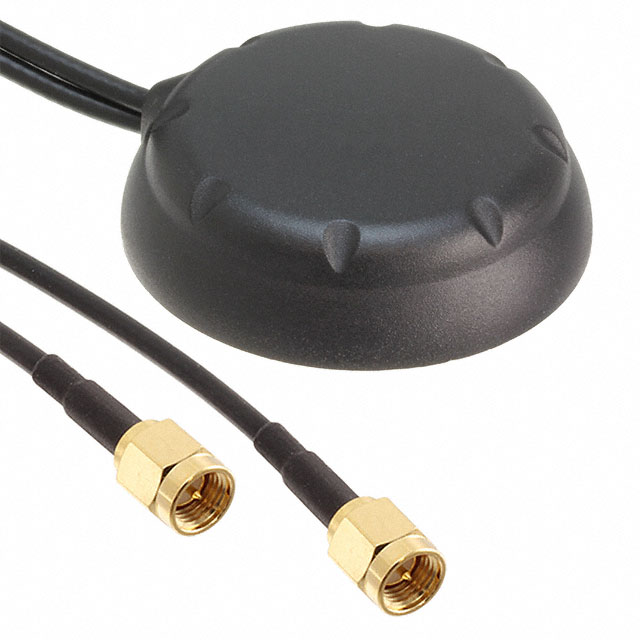

COMBINED 27DBI GPS/GSM PUCK ANTENNA (ANTF2300AA2630AT11)
Deep-Dive with AI
Search across all available documentation for this part.
ALPHA7/3M/SMAM/SMAM/S/S/11
ActiveSiretta Ltd
COMBINED 27DBI GPS/GSM PUCK ANTENNA (ANTF2300AA2630AT11)
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ALPHA7/3M/SMAM/SMAM/S/S/11 |
|---|---|
| Applications | GPS, GPRS, GSM |
| Frequency (Center/Band) | 1.8 GHz, 1.575 GHz, 900 MHz |
| Gain | 27 dB |
| Height (Max) [Max] | 0.689 in |
| Height (Max) [Max] | 17.5 mm |
| Mounting Type | Adhesive |
| Number of Bands | 3 |
| RF Family/Standard | Cellular, Navigation |
| VSWR | 2 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 10 | $ 27.93 | |
Description
General part information
ALPHA7 Series
RF ANTENNA GPRS, GPS, GSM Puck SMA Male Adhesive
