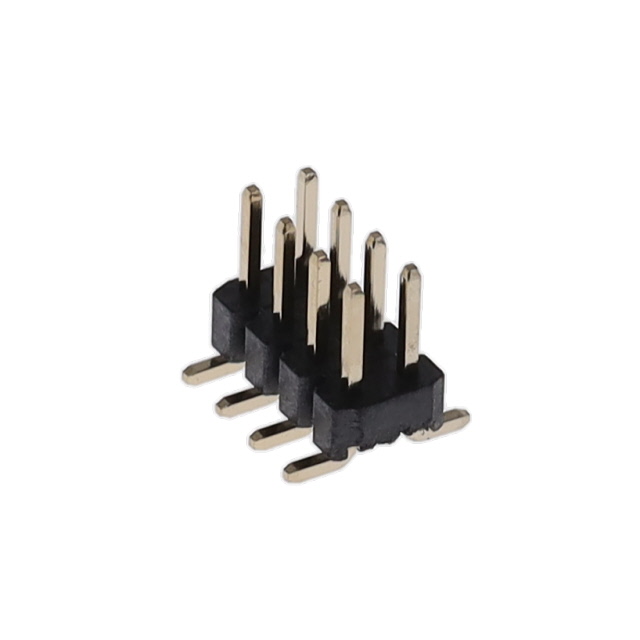

G825M08401YEU

Active

Amphenol ICC (Commercial Products)

PIN HEADER 2.0MM PITCH STR,SMT,2

Search across all available documentation for this part.

Active

Amphenol ICC (Commercial Products)

PIN HEADER 2.0MM PITCH STR,SMT,2

Technical Specifications

Parameters and characteristics for this part

Specification	G825M08401YEU

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	Flash
Contact Length - Mating	4 mm
Contact Length - Mating	0.157 in
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	1.5 A
Fastening Type	Push-Pull
Features	Pick and Place
Insulation Color	Black
Insulation Height	0.079 in
Insulation Height	2 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	8
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Shrouding	Unshrouded
Style	Board to Cable/Wire
Termination	Solder

Part	Insulation Height	Insulation Height	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Material	Number of Rows	Mounting Type	Contact Finish - Mating	Contact Finish Thickness - Post	Insulation Color	Current Rating (Amps)	Shrouding	Features	Contact Shape	Row Spacing - Mating	Row Spacing - Mating	Contact Type	Contact Length - Mating	Contact Length - Mating	Material Flammability Rating	Style	Pitch - Mating [x]	Pitch - Mating [x]	Connector Type	Number of Positions	Number of Positions Loaded	Contact Finish Thickness - Mating	Contact Finish - Post	Contact Material	Fastening Type
Amphenol ICC (Commercial Products) G825M08401YEU	0.079 in	2 mm	Solder	-25 °C	85 °C	Liquid Crystal Polymer (LCP)	2	Surface Mount	Gold	Flash	Black	1.5 A	Unshrouded	Pick and Place	Square	0.079 in	2 mm	Male Pin	4 mm	0.157 in	UL94 V-0	Board to Cable/Wire	0.079 in	2 mm	Header	8	All	Flash	Gold	Copper Alloy	Push-Pull

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Surface Mount 8 position 0.079" (2.00mm)
