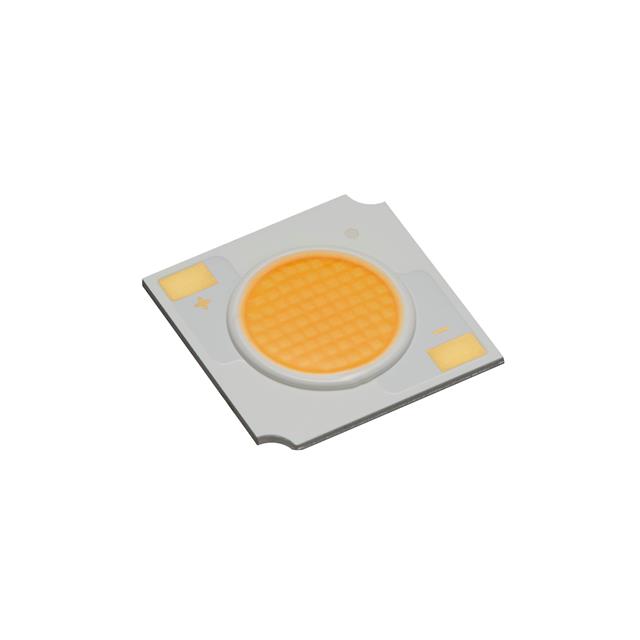

CLU723-1206E1-303M2X2
ActiveCitizen Finedevice Co Ltd
LED COB CLU723 WM WHT SQ 3000K
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CLU723-1206E1-303M2X2
ActiveCitizen Finedevice Co Ltd
LED COB CLU723 WM WHT SQ 3000K
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CLU723-1206E1-303M2X2 |
|---|---|
| CCT (K) | 3000 K |
| Color | White, Warm |
| Configuration | Square |
| CRI (Color Rendering Index) | 80 |
| Current - Max [Max] | 1.38 A |
| Current - Test | 1.05 A |
| Features | With Connector |
| Height [z] | 1.4 mm |
| Lens Type | Flat |
| Light Emitting Surface (LES) [diameter] | 11 mm |
| Lumens/Watt @ Current - Test | 131 lm/W |
| Luminous Flux @ Current/Temperature | 5346 lm |
| Size / Dimension [x] | 19 mm |
| Size / Dimension [y] | 19 mm |
| Temperature - Test | 85 °C |
| Type | Chip On Board (COB) |
| Voltage - Forward (Vf) (Typ) | 36.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 14.49 | |
| 48 | $ 9.89 | |||
| 144 | $ 9.18 | |||
| 528 | $ 8.56 | |||
| 1008 | $ 8.31 | |||
Description
General part information
CLU723 Series
LED Lighting COBs Engines Modules Chip On Board (COB) CLU723 White, Warm Square
