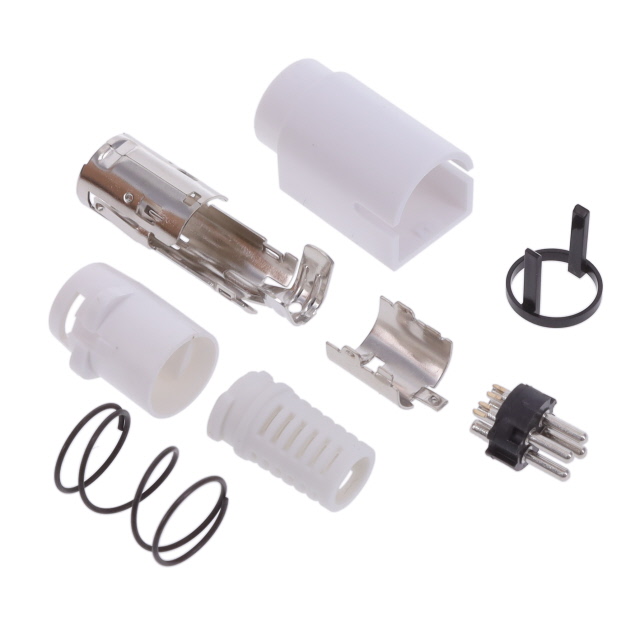

GTPWRDIN4LW

Active

GlobTek, Inc.

POWER DIN PLUG, 4P, SNAP AND LOC

Search across all available documentation for this part.

Active

GlobTek, Inc.

POWER DIN PLUG, 4P, SNAP AND LOC

Technical Specifications

Parameters and characteristics for this part

Specification	GTPWRDIN4LW

Applications	Medical
Color	White
Connector Type	Plug, Male Pins
Contact Finish - Mating	Silver
Contact Material	Brass
Current Rating (Amps)	7.5 A
Fastening Type	Snap-In
Features	Strain Relief
Insert Material	Nylon, Polyamide (PA)
Material Flammability Rating	UL94 V-2
Mounting Type	Free Hanging (In-Line)
Number of Positions	4
Operating Temperature [Max]	50 °C
Operating Temperature [Min]	-20 C
Orientation	Keyed
Termination	Solder
Voltage Rating	54 VDC

Part	Features	Contact Material	Fastening Type	Connector Type	Orientation	Mounting Type	Applications	Current Rating (Amps)	Material Flammability Rating	Contact Finish - Mating	Number of Positions	Voltage Rating	Shielding	Operating Temperature [Max]	Operating Temperature [Min]	Termination	Insert Material	Color
GlobTek, Inc. GTPWRDIN4LB	Strain Relief	Brass	Snap-In	Male Pins Plug	Keyed	Free Hanging (In-Line)	Medical	7.5 A	UL94 V-2	Silver	4	54 VDC	Shielded	50 °C	-20 C	Solder	Nylon Polyamide (PA)	Black
GlobTek, Inc. GTPWRDIN4LW	Strain Relief	Brass	Snap-In	Male Pins Plug	Keyed	Free Hanging (In-Line)	Medical	7.5 A	UL94 V-2	Silver	4	54 VDC		50 °C	-20 C	Solder	Nylon Polyamide (PA)	White

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Position Circular Connector Plug, Male Pins Solder
