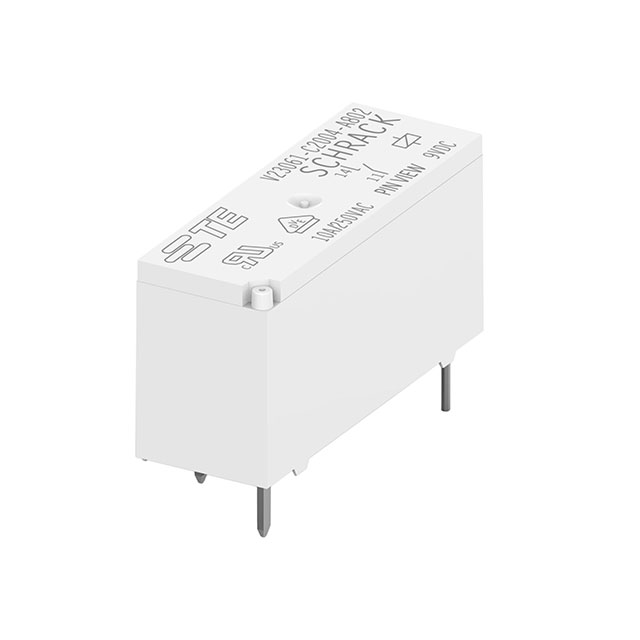

5-1416200-6

Active

TE Connectivity Potter & Brumfield Relays

RELAY GEN PURPOSE SPST 10A 9V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

5-1416200-6

Active

TE Connectivity Potter & Brumfield Relays

RELAY GEN PURPOSE SPST 10A 9V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	5-1416200-6

Approval Agency	cURus, VDE
Coil Current	24.7 mA
Coil Resistance	364 Ohms
Coil Type	Non Latching
Coil Voltage	9 VDC
Contact Form	SPST-NO (1 Form A)
Contact Material	Silver Nickel (AgNi)
Contact Rating (Current)	10 A
Load - Max Switching	4000 VA
Mounting Type	Through Hole
Must Operate Voltage	6.1 VDC
Must Release Voltage	0.9 VDC
Operate Time	10 ms
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Relay Type	General Purpose
Release Time	5 ms
Seal Rating	Sealed - Flux Protection
Switching Voltage [Max]	400 VAC
Termination Style	PC Pin

V23061 Series

Part	Operate Time	Contact Form	Switching Voltage [Max]	Relay Type	Must Operate Voltage	Termination Style	Contact Rating (Current)	Must Release Voltage	Contact Material	Load - Max Switching	Coil Resistance	Release Time	Coil Current	Mounting Type	Coil Type	Seal Rating	Coil Insulation	Approval Agency	Operating Temperature [Max]	Operating Temperature [Min]	Coil Voltage
TE Connectivity Potter & Brumfield Relays 5-1416200-5	10 ms	SPST-NO (1 Form A)	400 VAC	General Purpose	4.1 VDC	PC Pin	10 A	0.6 VDC	Silver Nickel (AgNi)	4000 VA	165 Ohms	5 ms	36.4 mA	Through Hole	Non Latching	Sealed - Flux Protection	Class F	cURus VDE	85 °C	-40 °C
TE Connectivity Potter & Brumfield Relays 5-1416200-6	10 ms	SPST-NO (1 Form A)	400 VAC	General Purpose	6.1 VDC	PC Pin	10 A	0.9 VDC	Silver Nickel (AgNi)	4000 VA	364 Ohms	5 ms	24.7 mA	Through Hole	Non Latching	Sealed - Flux Protection		cURus VDE	85 °C	-40 °C	9 VDC
TE Connectivity Potter & Brumfield Relays 5-1416200-8	10 ms	SPST-NO (1 Form A)	400 VAC	General Purpose	16.3 VDC	PC Pin	10 A	2.4 VDC	Silver Nickel (AgNi)	4000 VA	2.27 kOhms	5 ms	10.6 mA	Through Hole	Non Latching	Sealed - Flux Protection	Class F	cURus VDE	85 °C	-40 °C	24 VDC
TE Connectivity Potter & Brumfield Relays 6-1416200-5	10 ms	SPDT (1 Form C)	400 VAC	General Purpose	6.1 VDC	PC Pin	10 A	0.9 VDC	Silver Nickel (AgNi)	4000 VA	364 Ohms	5 ms	24.7 mA	Through Hole	Non Latching	Sealed - Flux Protection	Class F	cURus VDE	85 °C	-40 °C	9 VDC
TE Connectivity Potter & Brumfield Relays 3-1416200-1	6 ms	SPDT (1 Form C)	400 VAC	General Purpose	8.2 VDC	PC Pin	8 A	1.2 VDC	Silver Cadmium Oxide (AgCdO)	3200 VA	652 Ohms	2.5 ms	18.4 mA	Through Hole	Non Latching	Sealed - Flux Protection		cURus VDE	85 °C	-40 °C	12 VDC
TE Connectivity Potter & Brumfield Relays V23061A1005A602	6 ms	SPST-NO (1 Form A)	400 VAC	General Purpose	8.2 VDC	PC Pin	8 A	1.2 VDC		3200 VA	652 Ohms	2.5 ms	18.4 mA	Through Hole	Non Latching			cURus VDE	85 °C	-40 °C	12 VDC
TE Connectivity Potter & Brumfield Relays 1956240-3	10 ms	SPST-NO (1 Form A)	400 VAC	General Purpose	16.3 VDC	PC Pin	10 A	2.4 VDC	Silver Tin Oxide (AgSnO)	4000 VA	2.27 kOhms	5 ms	10.6 mA	Through Hole	Non Latching	Sealed - Flux Protection	Class F	cURus VDE	85 °C	-40 °C	24 VDC
TE Connectivity Potter & Brumfield Relays V23061A1007A602	6 ms	SPST-NO (1 Form A)	400 VAC	General Purpose	16.3 VDC	PC Pin	8 A	2.4 VDC		3200 VA	2.27 kOhms	2.5 ms	10.6 mA	Through Hole	Non Latching			cURus VDE	85 °C	-40 °C	24 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 2.47

Description

General part information

V23061 Series

General Purpose Relay SPST-NO (1 Form A) 9VDC Coil Through Hole
