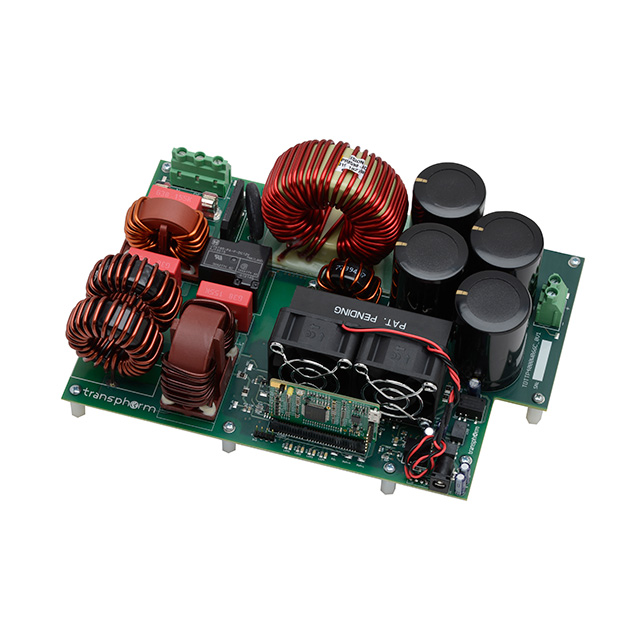

TDTTP4000W066C-KIT
ActiveTransphorm
4 KW TOTEM POLE EVAL BRD DSPIC
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TDTTP4000W066C-KIT
ActiveTransphorm
4 KW TOTEM POLE EVAL BRD DSPIC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TDTTP4000W066C-KIT |
|---|---|
| Board Type | Fully Populated |
| Frequency - Switching | 66 kHz |
| Main Purpose | AC/DC, PFC, Primary Side |
| Outputs and Type | Non-Isolated |
| Outputs and Type | 1 |
| Power - Output | 4 kW |
| Supplied Contents | Board(s) |
| Utilized IC / Part | TP65H035WS |
| Voltage - Input [Max] | 265 VAC |
| Voltage - Input [Min] | 85 VAC |
| Voltage - Output | 387 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1476.00 | |
Description
General part information
TDTTP4000W066C-KIT
TP65H035WS - AC/DC, Primary Side and PFC 1, Non-Isolated Outputs Evaluation Board
