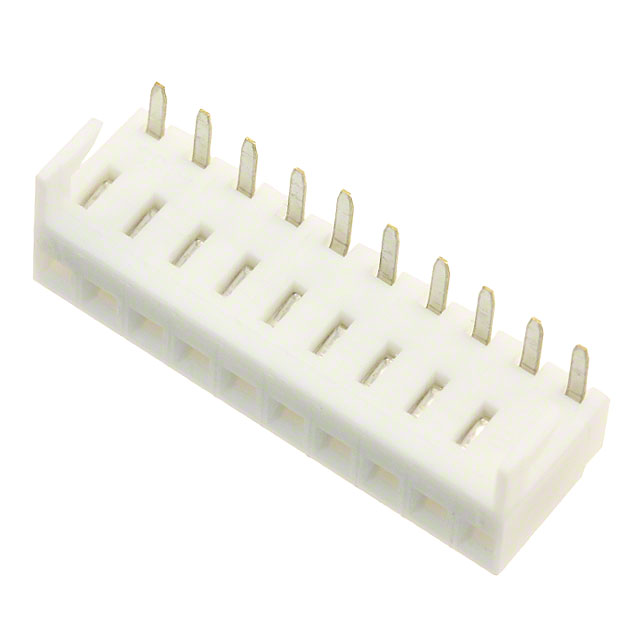

0022152106

Active

Molex

CONN RCPT 10POS 0.1 TIN EDGE MNT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

0022152106

Active

Molex

CONN RCPT 10POS 0.1 TIN EDGE MNT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0022152106

Applications	Medical, General Purpose, Automotive, Telecommunications
Connector Type	Receptacle
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	2.54 çm
Contact Finish Thickness - Mating	100 çin
Contact Finish Thickness - Post	2.54 µm
Contact Finish Thickness - Post	100 µin
Contact Length - Post	3.35 mm
Contact Length - Post	0.132 in
Contact Material	Brass
Contact Shape	Square
Contact Type	Female, Cat Ear
Current Rating (Amps)	2.5 A
Fastening Type	Push-Pull
Features	Board Hooks
Insulation Color	White
Insulation Height	0.185 in
Insulation Height	4.7 mm
Insulation Material	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Board Edge
Number of Positions	10
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	250 VAC

002215 Series

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Operating Temperature [Min]	Operating Temperature [Max]	Features	Connector Type	Number of Positions	Insulation Material	Contact Type	Current Rating (Amps)	Contact Finish - Post	Applications	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Style	Fastening Type	Voltage Rating	Insulation Color	Contact Length - Post	Contact Length - Post	Number of Positions Loaded	Contact Shape	Number of Rows	Insulation Height	Insulation Height	Termination	Mounting Type	Material Flammability Rating	Pitch - Mating	Pitch - Mating	Contact Material	Height Above Board	Height Above Board	Pitch [x]	Pitch [x]	Flat Flex Type	Connector/Contact Type	Housing Material	Contact Finish	Cable End Type	FFC, FCB Thickness
Molex 0022154102	2.54 µm	100 µin	-40 °C	80 C	Board Hooks	Receptacle	10	Nylon Polyamide (PA)	Non-Gendered	2.5 A	Tin	Automotive General Purpose Medical Telecommunications	2.54 çm	100 çin	Board to Board Cable	Push-Pull	250 VAC	White	3.35 mm	0.132 in	All	Square	1	0.185 in	4.7 mm	Solder	Through Hole Right Angle	UL94 V-0	0.1 in	2.54 mm	Brass
Molex 0022153103			-40 °C	105 ░C	Low Insertion Force (LIF)		10										200 V									Solder	Through Hole Right Angle	UL94 V-0			Phosphor Bronze	6.6 mm	0.26 "	2.54 mm	0.1 in	FFC	Contacts Bottom	Polyester	Tin	Straight	0.3 mm
Molex 0022152086	2.54 µm	100 µin	-40 °C	80 C	Board Hooks	Receptacle	8	Nylon Polyamide (PA)	Cat Ear Female Non-Gendered	2.5 A	Tin	Automotive General Purpose Medical Telecommunications	2.54 çm	100 çin	Board to Board Cable	Push-Pull	250 VAC	White	3.35 mm	0.132 in	All	Square	1	0.185 in	4.7 mm	Solder	Board Edge Right Angle Through Hole	UL94 V-0	0.1 in	2.54 mm	Brass
Molex 0022152036	2.54 µm	100 µin	-40 °C	80 C	Board Hooks	Receptacle		Nylon Polyamide (PA)	Non-Gendered	2.5 A	Tin	Automotive General Purpose Medical Telecommunications	2.54 çm	100 çin	Board to Board Cable	Push-Pull	250 VAC	White	3.35 mm	0.132 in	All	Square	1	0.185 in	4.7 mm	Solder	Board Edge Right Angle Through Hole	UL94 V-0	0.1 in	2.54 mm	Brass
Molex 0022154202	2.54 µm	100 µin	-40 °C	80 C	Board Hooks	Receptacle	20	Nylon Polyamide (PA)	Non-Gendered	2.5 A	Tin	Automotive General Purpose Medical Telecommunications	2.54 çm	100 çin	Board to Board Cable	Push-Pull	250 VAC	White	3.35 mm	0.132 in	All	Square	1	0.185 in	4.7 mm	Solder	Through Hole Right Angle	UL94 V-0	0.1 in	2.54 mm	Brass
Molex 0022153153			-40 °C	105 ░C	Low Insertion Force (LIF)		15										200 V									Solder	Through Hole Right Angle	UL94 V-0			Phosphor Bronze	6.6 mm	0.26 "	2.54 mm	0.1 in	FFC	Contacts Bottom	Polyester	Tin	Straight	0.3 mm
Molex 0022153043			-40 °C	105 ░C	Low Insertion Force (LIF)		4										200 V									Solder	Through Hole Right Angle	UL94 V-0			Phosphor Bronze	6.6 mm	0.26 "	2.54 mm	0.1 in	FFC	Contacts Bottom	Polyester	Tin	Straight	0.3 mm
Molex 0022153083			-40 °C	105 ░C	Low Insertion Force (LIF)		8										200 V									Solder	Through Hole Right Angle	UL94 V-0			Phosphor Bronze	6.6 mm	0.26 "	2.54 mm	0.1 in	FFC	Contacts Bottom	Polyester	Tin	Straight	0.3 mm
Molex 0022152106	2.54 µm	100 µin	-40 °C	80 C	Board Hooks	Receptacle	10	Nylon Polyamide (PA)	Cat Ear Female	2.5 A	Tin	Automotive General Purpose Medical Telecommunications	2.54 çm	100 çin	Board to Board Cable	Push-Pull	250 VAC	White	3.35 mm	0.132 in	All	Square	1	0.185 in	4.7 mm	Solder	Board Edge Right Angle Through Hole	UL94 V-0	0.1 in	2.54 mm	Brass
Molex 0022154084	2.54 µm	100 µin			Board Hooks	Receptacle	8	Nylon Polyamide (PA)	Non-Gendered		Tin	Automotive General Purpose Medical Telecommunications	2.54 çm	100 çin	Board to Board Cable	Push-Pull		White	3.35 mm	0.132 in	All	Square	1			Solder	Board Edge Right Angle Through Hole	UL94 V-0	0.1 in	2.54 mm	Brass

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 1.40
		10	$ 1.19
		100	$ 1.01
		500	$ 0.90
		1000	$ 0.86
		5000	$ 0.81

Description

General part information

002215 Series

10 Position Receptacle Connector 0.100" (2.54mm) Board Edge, Through Hole, Right Angle Tin
