USB-AM-S-S-B-TH

Active

Samtec Inc.

USB

Deep-Dive with AI

DocumentsUSB Datasheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	USB-AM-S-S-B-TH

Connector Type	USB-A (USB TYPE-A)
Contact Finish	Gold
Gender	Plug
Insulation Color	Black
Mating Cycles	1500
Mounting Feature	Horizontal
Mounting Type	Through Hole, Right Angle
Number of Contacts [custom]	4
Number of Ports	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-50 °C
Shielding	Unshielded
Specifications	USB 2.0
Termination	Solder
Voltage - Rated	30 VAC

USB-AM Series

Part	Specifications	Shielding	Mounting Type	Contact Finish	Number of Ports	Shell/Shielding Material	Mounting Feature	Mating Cycles	Insulation Color	Number of Contacts [custom]	Voltage - Rated	Connector Type	Termination	Gender	Operating Temperature [Max]	Operating Temperature [Min]	Features
Samtec Inc. USB-AM-S-F-W-TH	USB 2.0	Shielded	Through Hole Right Angle	Gold	1	Phosphor Bronze	Horizontal	1500	White	4	30 VAC	USB-A (USB TYPE-A)	Solder	Plug	85 °C	-50 °C
Samtec Inc. USB-AM-S-F-B-SM1-R-TR	USB 2.0	Shielded	Surface Mount Right Angle Through Hole	Gold	1		Horizontal	1500	Black	4	30 VAC	USB-A (USB TYPE-A)	Solder	Plug	85 °C	-50 °C	Board Guide
Samtec Inc. USB-AM-S-F-W-SM1-R-TR	USB 2.0	Shielded	Surface Mount Right Angle Through Hole	Gold	1		Horizontal	1500	White	4	30 VAC	USB-A (USB TYPE-A)	Solder	Plug	85 °C	-50 °C	Board Guide
Samtec Inc. USB-AM-S-F-B-SM1-R	USB 2.0	Shielded	Surface Mount Right Angle Through Hole	Gold	1		Horizontal	1500	Black	4	30 VAC	USB-A (USB TYPE-A)	Solder	Receptacle	85 °C	-50 °C
Samtec Inc. USB-AM-S-S-B-SM1-R-TR	USB 2.0	Shielded	Surface Mount Right Angle Through Hole	Gold	1		Horizontal	1500	Black	4	30 VAC	USB-A (USB TYPE-A)	Solder	Plug	85 °C	-50 °C	Board Guide
Samtec Inc. USB-AM-S-S-W-SM1-TR	USB 2.0	Shielded	Surface Mount Right Angle Through Hole	Gold	1		Horizontal	1500	White	4	30 VAC	USB-A (USB TYPE-A)	Solder	Plug	85 °C	-50 °C	Board Guide
Samtec Inc. USB-AM-S-S-W-SM1-R	USB 2.0	Shielded	Surface Mount Right Angle Through Hole	Gold	1		Horizontal	1500	White	4	30 VAC	USB-A (USB TYPE-A)	Solder	Plug	85 °C	-50 °C	Board Guide
Samtec Inc. USB-AM-S-S-B-TH-R	USB 2.0	Shielded	Through Hole Right Angle	Gold	1	Phosphor Bronze	Horizontal	1500	Black	4	30 VAC	USB-A (USB TYPE-A)	Solder	Plug	85 °C	-50 °C	Board Guide
Samtec Inc. USB-AM-S-S-B-TH	USB 2.0	Unshielded	Through Hole Right Angle	Gold	1		Horizontal	1500	Black	4	30 VAC	USB-A (USB TYPE-A)	Solder	Plug	85 °C	-50 °C
Samtec Inc. USB-AM-S-S-W-TH	USB 2.0	Shielded	Through Hole Right Angle	Gold	1	Phosphor Bronze	Horizontal	1500	White	4	30 VAC	USB-A (USB TYPE-A)	Solder	Plug	85 °C	-50 °C	Board Guide

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.09
		50	$ 1.71
		100	$ 1.45
		500	$ 1.29
		1000	$ 1.23

Description

General part information

USB-AM Series

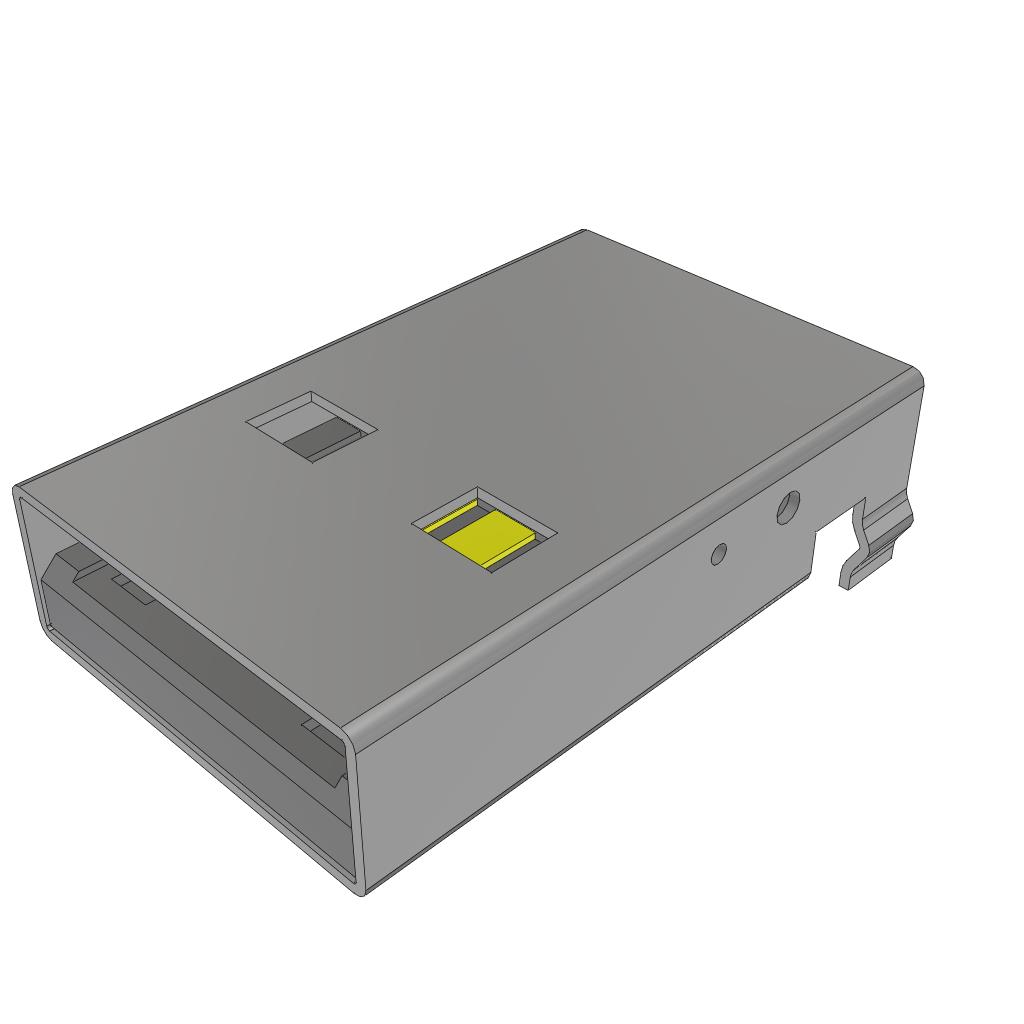

USB-A (USB TYPE-A) USB 2.0 Plug Connector 4 Position Through Hole, Right Angle

Documents

Technical documentation and resources

USB Datasheet

Datasheet
