97-3102E-20-4P(400)(955)

Active

Amphenol Industrial Operations

97 FMLB, BOX MOUNT RECEPTACLE, 2

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

97-3102E-20-4P(400)(955)

Active

Amphenol Industrial Operations

97 FMLB, BOX MOUNT RECEPTACLE, 2

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	97-3102E-20-4P(400)(955)

Applications	Industrial, Testing Equipment & Measurement
Color	Black
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Silver
Contact Material	Copper Alloy
Current Rating (Amps)	23 A
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Plastic
Mounting Feature	Flange
Number of Positions	4
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	N
Primary Material	Metal
Shell Finish	Black Zinc Alloy
Shell Material	Aluminum Alloy
Shell Size - Insert	20-4
Shielding	Unshielded
Voltage Rating	250 VAC, 500 VAC

97-3102E Series

Part	Color	Current Rating (Amps)	Contact Material	Primary Material	Contact Finish - Mating	Connector Type	Shell Material	Ingress Protection	Number of Positions	Orientation	Shielding	Shell Finish	Operating Temperature [Min]	Operating Temperature [Max]	Shell Size - Insert	Insert Material	Voltage Rating	Applications	Mounting Feature	Number of Positions [custom]	Number of Positions [custom]	Shell Size - Insert [Min]	Shell Size - Insert [Max]	Number of Positions [custom]
Amphenol Industrial Operations 97-3102E-18-10P(400)(955)	Black	23 A	Copper Alloy	Metal	Silver	Male Pins Receptacle	Aluminum Alloy	IP67 - Dust Tight Waterproof	4	N	Unshielded	Black Zinc Alloy	-55 °C	125 °C	18-10	Plastic	250 VAC 500 VAC	Industrial Testing Equipment & Measurement	Flange
Amphenol Industrial Operations 97-3102E-20-4P(400)(955)	Black	23 A	Copper Alloy	Metal	Silver	Male Pins Receptacle	Aluminum Alloy	IP67 - Dust Tight Waterproof	4	N	Unshielded	Black Zinc Alloy	-55 °C	125 °C	20-4	Plastic	250 VAC 500 VAC	Industrial Testing Equipment & Measurement	Flange
Amphenol Industrial Operations 97-3102E-24-11P(400)(955)	Black	23 A 46 A	Copper Alloy	Metal	Silver	Male Pins Receptacle	Aluminum Alloy	IP67 - Dust Tight Waterproof		N	Unshielded	Black Zinc Alloy	-55 °C	125 °C	24-11	Plastic	250 VAC	Industrial Testing Equipment & Measurement	Flange	2	7
Amphenol Industrial Operations 97-3102E-24-10P(400)(955)	Black	46 A	Copper Alloy	Metal	Silver	Male Pins Receptacle	Aluminum Alloy	IP67 - Dust Tight Waterproof		N	Unshielded	Black Zinc Alloy	-55 °C	125 °C		Plastic	250 VAC	Industrial Testing Equipment & Measurement	Flange		6	24	10	1

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 11.53
		10	$ 9.83
		25	$ 9.28
		50	$ 9.23
		100	$ 8.68
		250	$ 8.23
		500	$ 8.03
		1000	$ 7.83

Description

General part information

97-3102E Series

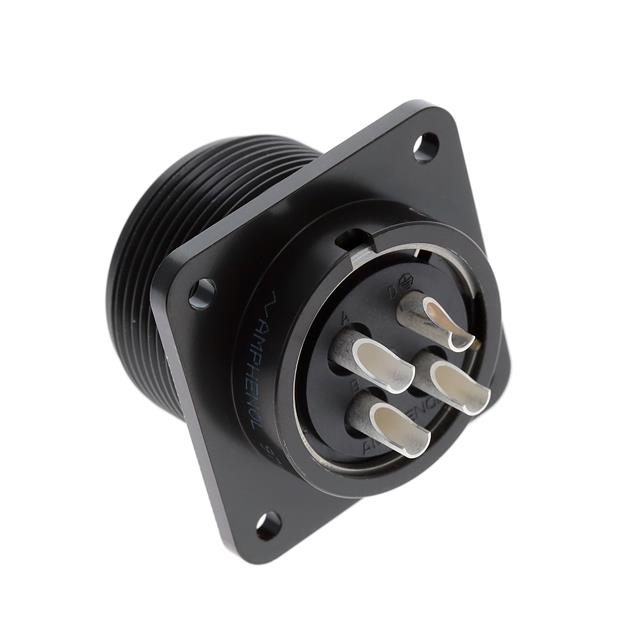

4 (3 + PE) Position Circular Connector Receptacle, Male Pins Solder Cup
