E3524S.41.03

Active

Prysmian Group

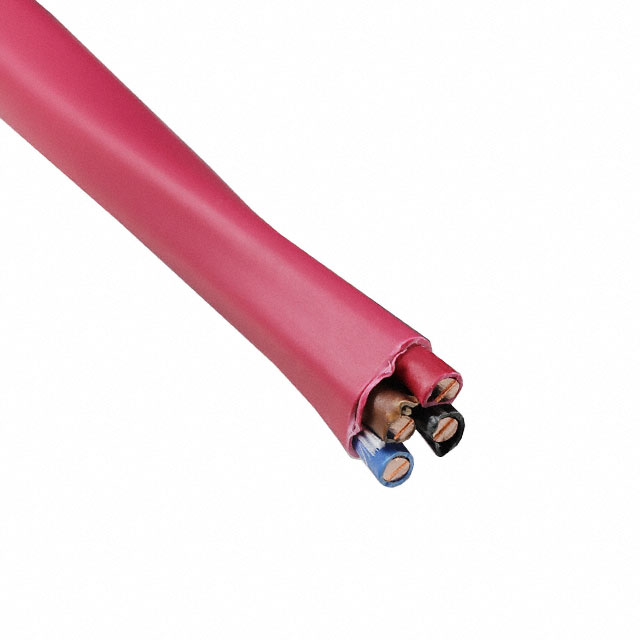

CABLE 4COND 14AWG RED 100'

Search across all available documentation for this part.

Active

Prysmian Group

CABLE 4COND 14AWG RED 100'

Technical Specifications

Parameters and characteristics for this part

Specification	E3524S.41.03

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Annealed Bare
Conductor Strand	Solid
Features	Rip Cord
Jacket (Insulation) Diameter [diameter]	0.243 "
Jacket (Insulation) Diameter [diameter]	6.17 mm
Jacket (Insulation) Material	Plenum, Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.015 in
Jacket (Insulation) Thickness	0.381 mm
Jacket Color	Red
Length	1000 ft
Length	304.8 m, 15.24 m
Length [x]	30.5 m, 7.62 m
Length [x]	100 ft, 50 ft, 25 ft
Number of Conductors	4
Operating Temperature [Max]	75 ░C
Operating Temperature [Min]	0 °C
Ratings	ASTM B-3
Usage	Alarm, Safety
Voltage	300 V
Wire Gauge	13.5 AWG

Part	Usage	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Length	Length	Jacket Color	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Cable Type	Conductor Material	Jacket (Insulation) Material	Voltage	Number of Conductors	Length [x]	Length [x]	Operating Temperature [Max]	Operating Temperature [Min]	Conductor Strand	Ratings	Features	Conductor Insulation	Wire Gauge
Prysmian Group E3524S.41.03	Alarm Safety	0.243 "	6.17 mm	1000 ft	15.24 m 304.8 m	Red	0.015 in	0.381 mm	Multi-Conductor	Copper Annealed Bare	Plenum Poly-Vinyl Chloride (PVC)	300 V	4	7.62 m 30.5 m	25 ft 50 ft 100 ft	75 ░C	0 °C	Solid	ASTM B-3	Rip Cord	Poly-Vinyl Chloride (PVC)	13.5 AWG

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Conductor Multi-Conductor Cable Red 14 AWG 100.0' (30.5m)
