DF63-1P-3.96DSA

Obsolete

Hirose Electric USA, Inc.

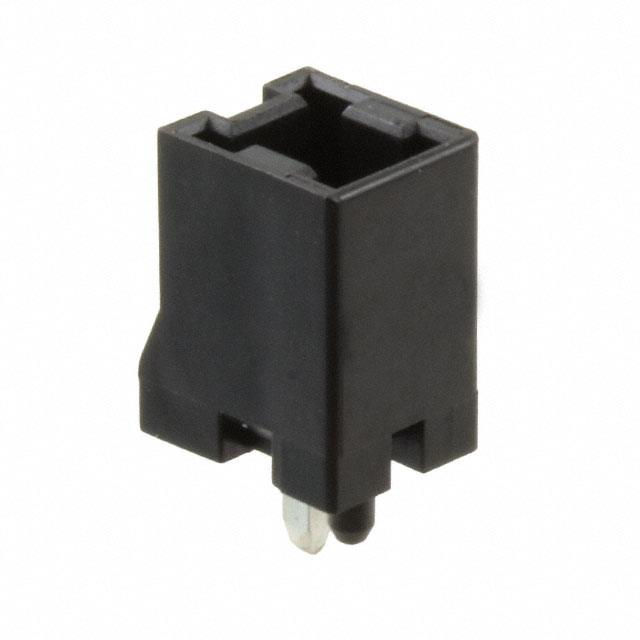

RECTANGULAR POWER CONNECTOR, 1 CONTACT(S), MALE, SOLDER TERMINAL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

DF63-1P-3.96DSA

Obsolete

Hirose Electric USA, Inc.

RECTANGULAR POWER CONNECTOR, 1 CONTACT(S), MALE, SOLDER TERMINAL

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DF63-1P-3.96DSA

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Post [x]	0.15 in
Contact Length - Post [x]	3.81 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	Varies by Wire Gauge
Fastening Type	Latch Holder
Features	Board Guide
Insulation Color	Black
Insulation Height	10 mm
Insulation Height	0.394 "
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	1
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	600 VAC

DF63 Series

Headers & Wire Housings

Part	Fastening Type	Pitch - Mating	Pitch - Mating	Style	Connector Type	Features	Number of Positions Loaded	Termination	Insulation Height	Insulation Height	Material Flammability Rating	Voltage Rating	Contact Shape	Operating Temperature [Max]	Operating Temperature [Min]	Shrouding	Mounting Type	Insulation Material	Number of Positions	Current Rating (Amps)	Contact Length - Post [x]	Contact Length - Post [x]	Insulation Color	Contact Material	Contact Type	Contact Finish - Post	Number of Rows	Contact Finish - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish	Contact Termination	Type	Wire Gauge [Min]	Wire Gauge [Max]	Pin or Socket	Color	Pitch [x]	Pitch [x]	Note	Contact Length - Post	Contact Length - Post
Hirose Electric USA, Inc. DF63-4P-3.96DSA	Latch Holder	0.156 in	3.96 mm	Board to Cable/Wire	Header	Board Guide	All	Solder	10 mm	0.394 "	UL94 V-0	600 VAC	Square	105 ░C	-55 °C	Shrouded - 4 Wall	Through Hole	Polybutylene Terephthalate (PBT) Glass Filled	4	Varies by Wire Gauge	0.15 in	3.81 mm	Black	Brass	Male Pin	Tin	1
Hirose Electric USA, Inc. DF63-3P-7.92DSA(01)	Latch Holder	0.312 in	7.92 mm	Board to Cable/Wire	Header	Board Guide	All	Solder	10 mm	0.394 "	UL94 V-0	600 VAC	Square	105 ░C	-55 °C	Shrouded - 4 Wall	Through Hole	Polybutylene Terephthalate (PBT) Glass Filled		Varies by Wire Gauge	0.15 in	3.81 mm	Black	Brass	Male Pin	Tin	1	Gold	1 çm	39.4 çin	0.203 Ám	8 Áin
Hirose Electric USA, Inc. DF63-5P-3.96DSA(01)	Latch Holder	0.156 in	3.96 mm	Board to Cable/Wire	Header	Board Guide	All	Solder	10 mm	0.394 "	UL94 V-0	600 VAC	Square	105 ░C	-55 °C	Shrouded - 4 Wall	Through Hole	Polybutylene Terephthalate (PBT) Glass Filled		Varies by Wire Gauge	0.15 in	3.81 mm	Black	Brass	Male Pin	Tin	1	Gold	1 çm	39.4 çin	0.203 Ám	8 Áin
Hirose Electric USA, Inc. DF63-1618SCFA																																	Gold	Crimp	Stamped	16 AWG	18 AWG	Socket
Hirose Electric USA, Inc. DF63-2P-3.96DSA(01)	Latch Holder	0.156 in	3.96 mm	Board to Cable/Wire	Header	Board Guide	All	Solder	10 mm	0.394 "	UL94 V-0	600 VAC	Square	105 ░C	-55 °C	Shrouded - 4 Wall	Through Hole	Polybutylene Terephthalate (PBT) Glass Filled	2	Varies by Wire Gauge	0.15 in	3.81 mm	Black	Brass	Male Pin	Tin	1	Gold	1 çm	39.4 çin	0.203 Ám	8 Áin
Hirose Electric USA, Inc. DF63-1P-3.96DSA	Latch Holder			Board to Cable/Wire	Header	Board Guide	All	Solder	10 mm	0.394 "	UL94 V-0	600 VAC	Square	105 ░C	-55 °C	Shrouded - 4 Wall	Through Hole	Polybutylene Terephthalate (PBT) Glass Filled	1	Varies by Wire Gauge	0.15 in	3.81 mm	Black	Brass	Male Pin	Tin	1
Hirose Electric USA, Inc. DF63-3EP-3.96C	Latch Holder				Plug									105 ░C	-55 °C		Free Hanging (In-Line)	Polybutylene Terephthalate (PBT)							Male Pin		1							Crimp					Black	0.156 in	3.96 mm	Contacts Not Included
Hirose Electric USA, Inc. DF63-3P-7.92DS	Latch Holder	0.312 in	7.92 mm	Board to Cable/Wire	Header	Board Guide	All	Solder	9 mm	0.354 in	UL94 V-0	600 VAC	Square	105 ░C	-55 °C	Shrouded - 4 Wall	Through Hole Right Angle	Polybutylene Terephthalate (PBT) Glass Filled		Varies by Wire Gauge			Black	Brass	Male Pin	Tin	1																3.5 mm	0.138 in
Hirose Electric USA, Inc. DF63-5P-3.96DS(01)	Latch Holder	0.156 in	3.96 mm	Board to Cable/Wire	Header	Board Guide	All	Solder	9 mm	0.354 in	UL94 V-0	600 VAC	Square	105 ░C	-55 °C	Shrouded - 4 Wall	Through Hole Right Angle	Polybutylene Terephthalate (PBT) Glass Filled		Varies by Wire Gauge			Black	Brass	Male Pin	Tin	1	Gold	1 çm	39.4 çin	0.203 Ám	8 Áin											3.5 mm	0.138 in
Hirose Electric USA, Inc. DF63-2022SC																																	Tin	Crimp	Stamped	20 AWG	22 AWG	Socket
