5962-8877003PA

Active

Analog Devices Inc./Maxim Integrated

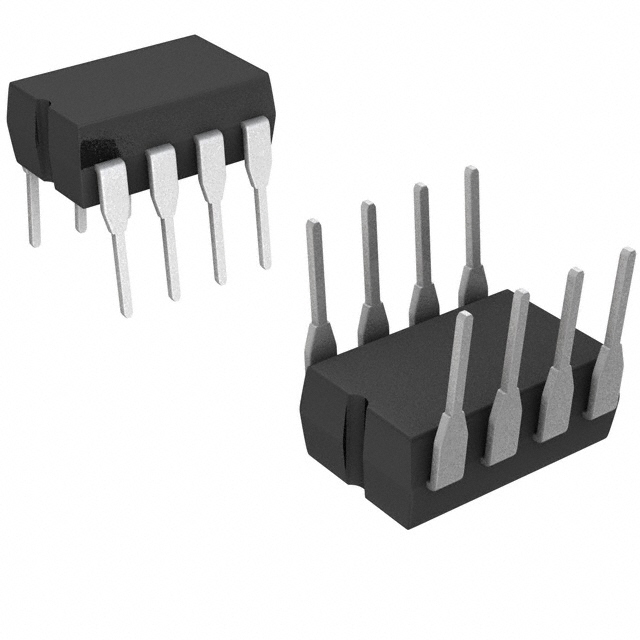

IC GATE DRVR LOW-SIDE 8CERDIP

Search across all available documentation for this part.

Active

Analog Devices Inc./Maxim Integrated

IC GATE DRVR LOW-SIDE 8CERDIP

Technical Specifications

Parameters and characteristics for this part

Specification	5962-8877003PA

Channel Type	Single
Current - Peak Output (Source, Sink) [custom]	6 A
Current - Peak Output (Source, Sink) [custom]	6 A
Driven Configuration	Low-Side
Gate Type	N-Channel, P-Channel MOSFET
Input Type	Non-Inverting
Mounting Type	Through Hole
Number of Drivers	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	7.62 mm
Package / Case	0.3 in
Package / Case	8-CDIP
Rise / Fall Time (Typ) [custom]	25 ns
Rise / Fall Time (Typ) [custom]	25 ns
Supplier Device Package	8-CERDIP
Voltage - Supply [Max]	18 V
Voltage - Supply [Min]	4.5 V

Part	Number of Drivers	Supplier Device Package	Channel Type	Gate Type	Package / Case	Package / Case	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply [Max]	Voltage - Supply [Min]	Driven Configuration	Mounting Type	Current - Peak Output (Source, Sink) [custom]	Current - Peak Output (Source, Sink) [custom]	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Input Type
Analog Devices Inc./Maxim Integrated 5962-8877003PA	1	8-CERDIP	Single	N-Channel P-Channel MOSFET	7.62 mm	0.3 in	8-CDIP	125 °C	-55 °C	18 V	4.5 V	Low-Side	Through Hole	6 A	6 A	25 ns	25 ns	Non-Inverting
