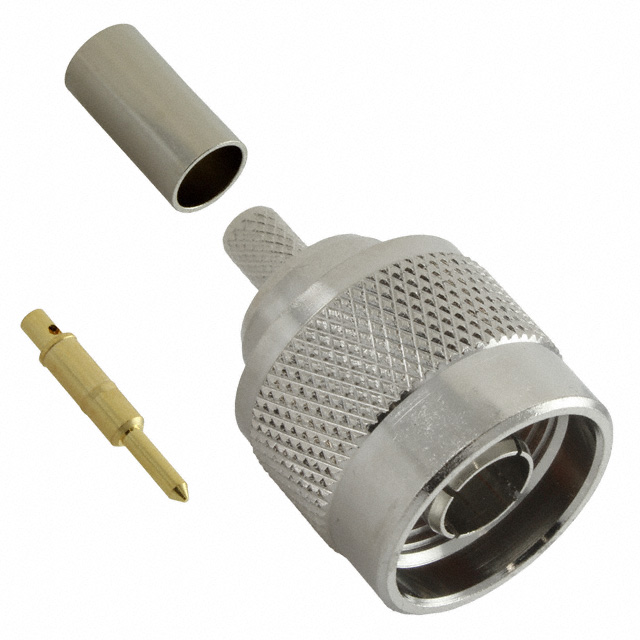

VN10-2051
ActiveCinch Connectivity Solutions Trompeter
CONN N PLUG STR 50 OHM SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
VN10-2051
ActiveCinch Connectivity Solutions Trompeter
CONN N PLUG STR 50 OHM SOLDER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | VN10-2051 |
|---|---|
| Body Finish | Nickel |
| Body Material | Brass |
| Cable Group | RG-58 |
| Center Contact Material | Brass |
| Center Contact Plating | Gold |
| Connector Style | N Type |
| Connector Type | Male Pin, Plug |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Frequency - Max [Max] | 11 GHz |
| Housing Color | Silver |
| Impedance | 50 Ohms |
| Includes | 1 Ferrule, 1 Contact, 1 Connector |
| Insertion Loss | 0.17 dB |
| Mating Cycles | 500 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Ports | 1 |
| Operating Temperature [Max] | 165 °C |
| Operating Temperature [Min] | -65 ░C |
| Shield Termination | Crimp |
| Voltage Rating | 1500 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 12.44 | |
| 10 | $ 11.03 | |||
| 25 | $ 10.60 | |||
| 50 | $ 10.18 | |||
| 100 | $ 9.62 | |||
| 250 | $ 8.77 | |||
| 500 | $ 8.20 | |||
| 1000 | $ 7.52 | |||
Description
General part information
VN10 Series
N Type Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Solder
