PTN1.00CL250

Active

Techflex

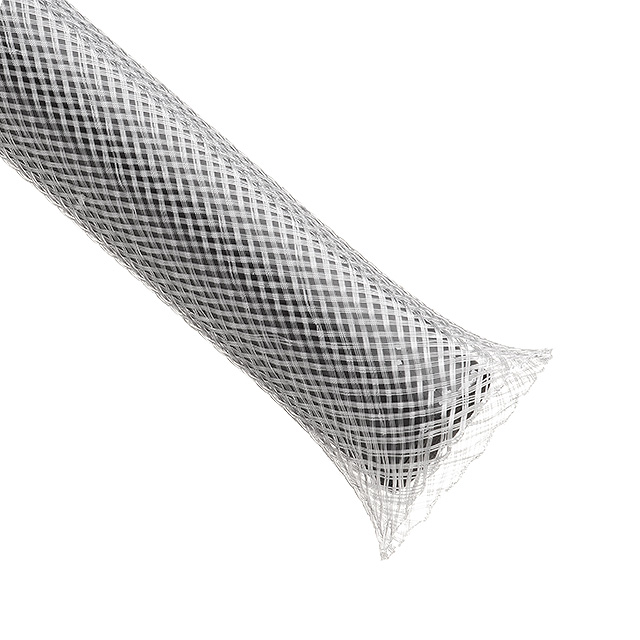

EXPANDABLE SLEEVE 1" X 250' CLR

Search across all available documentation for this part.

Active

Techflex

EXPANDABLE SLEEVE 1" X 250' CLR

Technical Specifications

Parameters and characteristics for this part

Specification	PTN1.00CL250

Abrasion Protection	Abrasion and Cut Resistant
Color	Clear
Diameter - Inside, Expanded [diameter]	41.28 mm
Diameter - Inside, Expanded [diameter]	1.625 in
Diameter - Inside, Non-Expanded [diameter]	1 in
Diameter - Inside, Non-Expanded [diameter]	25.4 mm
Environment Protection	UV Resistant
Features	Clean Cut, Chemical Resistant, Solvent Resistant
Heat Protection	Heat Resistant
Length [x]	76.2 m
Length [x]	250 ft
Liquid Protection	Gasoline Resistant
Material	Polyethylene Terephthalate (PET), Halogen Free
Material Flammability Rating	UL94 V-0
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-70 °C
Type	Sleeve
Type Attributes	Expandable
Wall Thickness [custom]	0.025 in
Wall Thickness [custom]	0.64 mm

Part	Heat Protection	Material Flammability Rating	Type Attributes	Wall Thickness [custom]	Wall Thickness [custom]	Diameter - Inside, Non-Expanded [diameter]	Diameter - Inside, Non-Expanded [diameter]	Features	Environment Protection	Type	Operating Temperature [Max]	Operating Temperature [Min]	Abrasion Protection	Material	Diameter - Inside, Expanded [diameter]	Diameter - Inside, Expanded [diameter]	Color	Length [x]	Length [x]	Liquid Protection
Techflex PTN1.00CL250	Heat Resistant	UL94 V-0	Expandable	0.025 in	0.64 mm	1 in	25.4 mm	Chemical Resistant Clean Cut Solvent Resistant	UV Resistant	Sleeve	125 °C	-70 °C	Abrasion and Cut Resistant	Polyethylene Terephthalate (PET) Halogen Free	41.28 mm	1.625 in	Clear	76.2 m	250 ft	Gasoline Resistant

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Sleeve X 250' (76.20m) Clear
