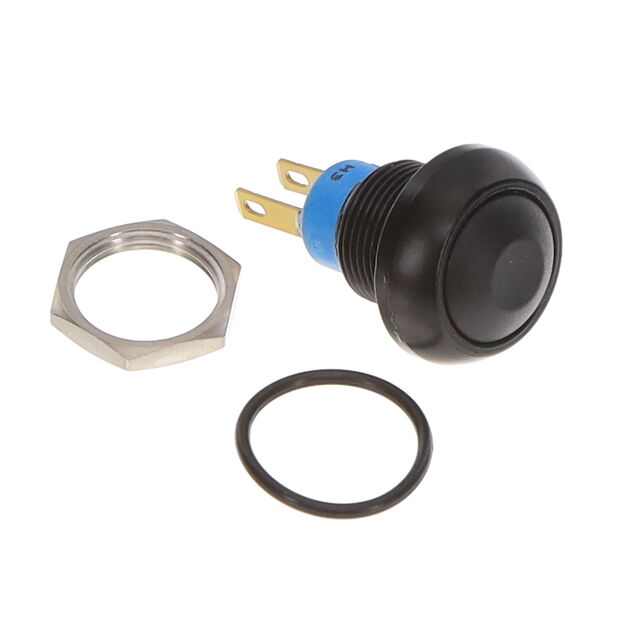

IPR3Z1AD2
ActiveAPEM
SWITCH PUSH SPST-NO 0.5A 48V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
IPR3Z1AD2
ActiveAPEM
SWITCH PUSH SPST-NO 0.5A 48V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | IPR3Z1AD2 |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Round, Button |
| Circuit | SPST-NO |
| Color - Actuator/Cap | Black |
| Current Rating (Amps) | 200 mA, 500 mA |
| Electrical Life | 500000 Cycles |
| Features | Tactile Feedback |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Mounting Type | Panel Mount, Front |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Panel Cutout Dimensions [diameter] | 13.6 mm |
| Switch Function | Off-Mom |
| Termination Style | Quick Connect - 0.110" (2.8mm) |
| Type | Standard |
| Voltage Rating - AC | 48 V |
| Voltage Rating - DC | 48 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 26.95 | |
| 10 | $ 23.25 | |||
| 25 | $ 21.92 | |||
| 50 | $ 20.96 | |||
| 100 | $ 20.05 | |||
| 250 | $ 18.89 | |||
| 500 | $ 18.06 | |||
Description
General part information
IPR3Z1AD Series
Pushbutton Switch SPST-NO Standard Panel Mount, Front
