150-08110

Active

HELLERMANNTYTON

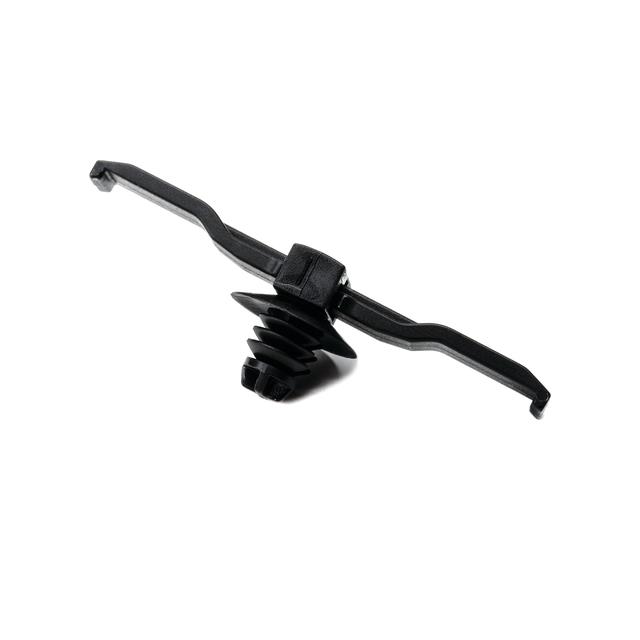

CBL CLIP BUNDLING BLACK ARROW

Search across all available documentation for this part.

Active

HELLERMANNTYTON

CBL CLIP BUNDLING BLACK ARROW

Technical Specifications

Parameters and characteristics for this part

Specification	150-08110

Color	Black
Features	Heat Stabilized
Height [z]	7.7 mm
Height [z]	0.303 in
Length [x]	54 mm
Length [x]	2.126 "
Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-2
Mounting Type	Cupped, Arrowhead
Panel Hole Size [Max]	7 mm
Panel Hole Size [Max]	0.276 in
Panel Hole Size [Min]	6.3 mm
Panel Hole Size [Min]	0.248 in
Panel Thickness [Max]	1.2 mm
Panel Thickness [Max]	0.047 "
Panel Thickness [Min]	0.02 "
Panel Thickness [Min]	0.5 mm
Type	Bundling, Clip
Width [x]	0.236 in
Width [x]	6 mm

Part	Color	Height [z]	Height [z]	Features	Length [x]	Length [x]	Material Flammability Rating	Material	Width [x]	Width [x]	Panel Thickness [Min]	Panel Thickness [Max]	Panel Thickness [Max]	Panel Thickness [Min]	Type	Mounting Type	Panel Hole Size [Max]	Panel Hole Size [Max]	Panel Hole Size [Min]	Panel Hole Size [Min]
HELLERMANNTYTON 150-08110	Black	7.7 mm	0.303 in	Heat Stabilized	54 mm	2.126 "	UL94 V-2	Polyamide (PA66) Nylon 6/6	0.236 in	6 mm	0.02 "	1.2 mm	0.047 "	0.5 mm	Bundling Clip	Arrowhead Cupped	7 mm	0.276 in	6.3 mm	0.248 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	10000	$ 0.27
