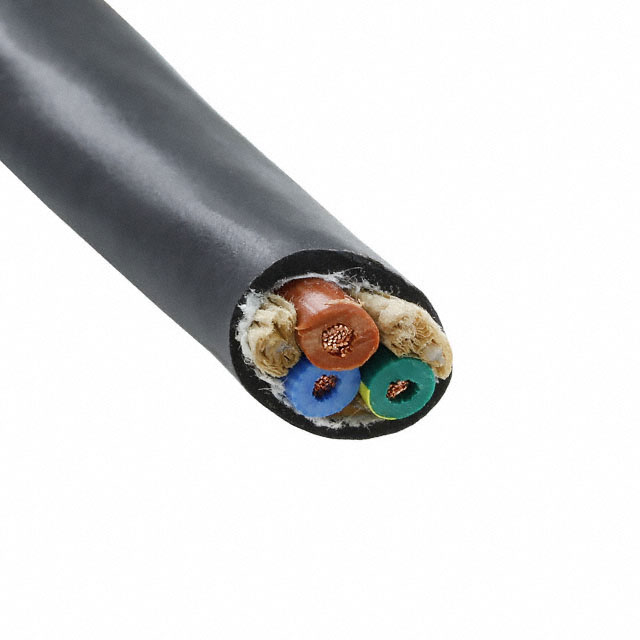

25073/1 BK199

Active

ALPHA WIRE

CABLE 3COND 16AWG BLACK 1000'

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 3COND 16AWG BLACK 1000'

Technical Specifications

Parameters and characteristics for this part

Specification	25073/1 BK199

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	19
Conductor Strand [custom]	0.0117 in
Features	Rip Cord, Biological Compatibility
Jacket (Insulation) Diameter [diameter]	0.264 in
Jacket (Insulation) Diameter [diameter]	6.71 mm
Jacket (Insulation) Material	Polyurethane (PU)
Jacket Color	Black
Length	1000 ft
Length	304.8 m
Number of Conductors	3
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	-30 ░C
Ratings	UL Style 20668, ISO 10993
Voltage	300 V
Wire Gauge	16 AWG

Part	Operating Temperature [Min]	Operating Temperature [Max]	Number of Conductors	Jacket (Insulation) Material	Length	Length	Voltage	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Cable Type	Features	Jacket Color	Ratings	Conductor Insulation	Wire Gauge	Conductor Strand [custom]	Conductor Strand [custom]	Conductor Material
ALPHA WIRE 25073/1 BK199	-30 ░C	90 °C	3	Polyurethane (PU)	1000 ft	304.8 m	300 V	0.264 in	6.71 mm	Multi-Conductor	Biological Compatibility Rip Cord	Black	ISO 10993 UL Style 20668	Poly-Vinyl Chloride (PVC)	16 AWG	19	0.0117 in	Copper Tinned

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 4.31
Newark	1 Foot	25	$ 4.63

General part information

3 Conductor Multi-Conductor Cable Black 16 AWG 1000.0' (304.8m)
