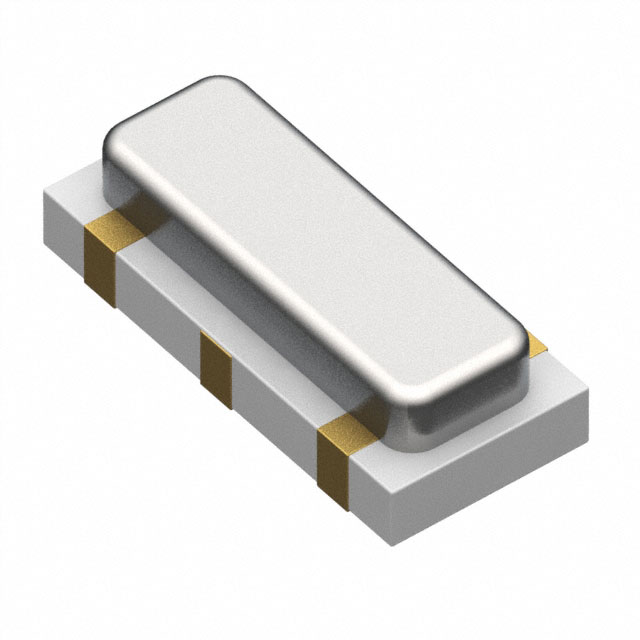

CSTNR4M91GH5L000R0
ActiveMurata Power Solutions Inc.
CERAMIC RES 4.9150MHZ 39PF SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CSTNR4M91GH5L000R0
ActiveMurata Power Solutions Inc.
CERAMIC RES 4.9150MHZ 39PF SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CSTNR4M91GH5L000R0 |
|---|---|
| Capacitance | 39 pF |
| Features | Built in Capacitor |
| Frequency | 4.915 MHz |
| Frequency Stability | 0.11 % |
| Frequency Tolerance | 0.07 % |
| Height [z] | 0.047 in |
| Height [z] | 1.2 mm |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -20 C |
| Package / Case | 3-SMD, Non-Standard |
| Size / Dimension [x] | 0.177 in |
| Size / Dimension [x] | 4.5 mm |
| Size / Dimension [y] | 0.079 in |
| Size / Dimension [y] | 2 mm |
| Type | Ceramic |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.55 | |
| 10 | $ 0.46 | |||
| 50 | $ 0.41 | |||
| 100 | $ 0.37 | |||
| 500 | $ 0.35 | |||
| 1000 | $ 0.29 | |||
| Digi-Reel® | 1 | $ 0.55 | ||
| 10 | $ 0.46 | |||
| 50 | $ 0.41 | |||
| 100 | $ 0.37 | |||
| 500 | $ 0.35 | |||
| 1000 | $ 0.29 | |||
| Tape & Reel (TR) | 3000 | $ 0.27 | ||
| 6000 | $ 0.27 | |||
| 15000 | $ 0.26 | |||
Description
General part information
CSTNR Series
4.915 MHz Ceramic Resonator Built in Capacitor 39 pF ±0.11% -20°C ~ 85°C Surface Mount
