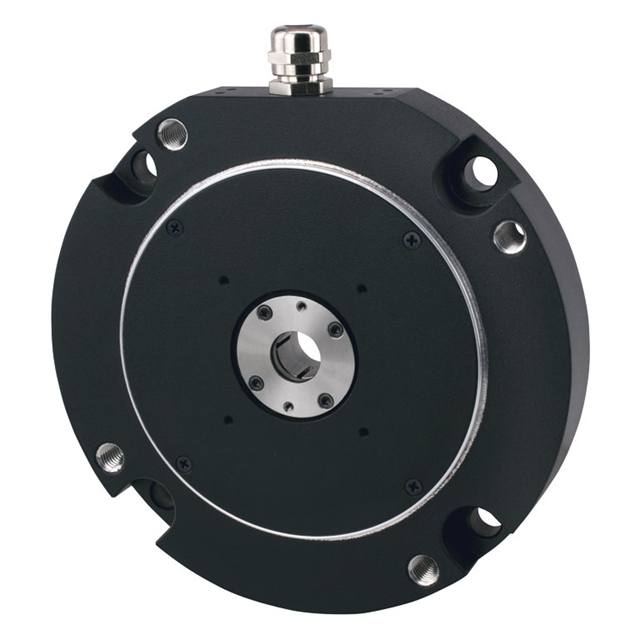

770-B-S-1024-R-HV-C-P-N-N-N

Active

Encoder Products Company

NEMA 56C C-FACE,THROUGH-BORE, IN

Search across all available documentation for this part.

Active

Encoder Products Company

NEMA 56C C-FACE,THROUGH-BORE, IN

Technical Specifications

Parameters and characteristics for this part

Specification	770-B-S-1024-R-HV-C-P-N-N-N

Actuator Type	Open Center
Actuator Type	0.875 in
Built in Switch	False
Detent	False
Encoder Type	Incremental
Mounting Type	Chassis Mount, Motors
Orientation	User Selectable
Output Type	Quadrature Line Driver with Index (Incremental)
Pulses per Revolution	1024
Termination Style	Cable
Voltage - Supply [Max]	28 V
Voltage - Supply [Min]	4.75 V

Part	Built in Switch	Actuator Type	Actuator Type	Mounting Type	Pulses per Revolution	Voltage - Supply [Min]	Voltage - Supply [Max]	Output Type	Detent	Termination Style	Encoder Type	Orientation
Encoder Products Company 770-B-S-1024-R-HV-C-P-N-N-N		Open Center	0.875 in	Chassis Mount Motors	1024	4.75 V	28 V	Quadrature Line Driver with Index (Incremental)		Cable	Incremental	User Selectable

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 1164.00

General part information

Rotary Encoder Incremental 1024 Quadrature Line Driver with Index (Incremental) User Selectable
