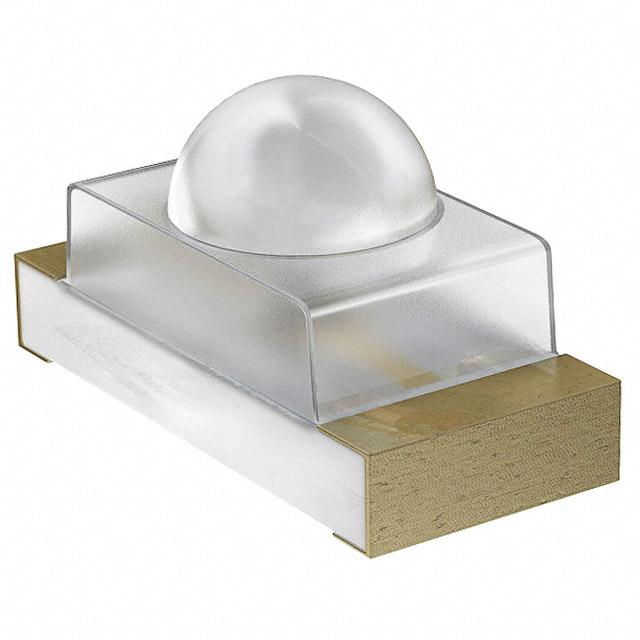

APTD1608SECK

Active

Kingbright

LED ORANGE CLEAR 2SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

APTD1608SECK

Active

Kingbright

LED ORANGE CLEAR 2SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	APTD1608SECK

Configuration	Standard
Current - Test	20 mA
Height (Max) [Max] [z]	1.1 mm
Lens Color	Colorless
Lens Size [diameter]	0.7 mm
Lens Style	Round with Domed Top
Lens Transparency	Clear
Millicandela Rating	500 mcd
Mounting Type	Surface Mount
Package / Case	0603 (1608 Metric)
Size / Dimension [x]	1.6 mm
Size / Dimension [y]	0.8 mm
Supplier Device Package	2-SMD
Viewing Angle	60 °
Voltage - Forward (Vf) (Typ)	2.1 V
Wavelength - Dominant	601 nm
Wavelength - Peak	610 nm

APTD1608 Series

Part	Lens Transparency	Lens Style	Package / Case	Lens Color	Millicandela Rating	Configuration	Height (Max) [Max] [z]	Mounting Type	Color	Current - Test	Wavelength - Dominant	Lens Size [diameter]	Supplier Device Package	Voltage - Forward (Vf) (Typ)	Size / Dimension [x]	Size / Dimension [y]	Viewing Angle	Wavelength - Peak	Viewing Angle [custom]	Wavelength - Peak [custom]
Kingbright APTD1608CGCK	Clear	Round with Domed Top	0603 (1608 Metric)	Colorless	190 mcd	Standard	1.1 mm	Surface Mount	Green	20 mA	570 nm	0.7 mm	Chip LED	2.1 V	1.6 mm	0.8 mm	60 °
Kingbright APTD1608VBC/D	Clear	Round with Domed Top	0603 (1608 Metric)	Colorless	350 mcd	Standard	1.1 mm	Surface Mount	Blue	20 mA	470 nm	0.7 mm	Chip LED	3.3 V	1.6 mm	0.8 mm		465 nm	40 °
Kingbright APTD1608SYCK	Clear	Round with Domed Top	0603 (1608 Metric)	Colorless	450 mcd	Standard	1.1 mm	Surface Mount	Yellow	20 mA	590 nm	0.7 mm	Chip LED	2 V	1.6 mm	0.8 mm	60 °	590 nm
Kingbright APTD1608LVBC/D	Clear	Round with Domed Top	0603 (1608 Metric)	Colorless	65 mcd	Standard	1.1 mm	Surface Mount	Blue	2 mA	470 nm	0.7 mm	2-SMD	2.65 V	1.6 mm	0.8 mm		465 nm	40 °
Kingbright APTD1608LQBC/D	Clear	Round with Domed Top	0603 (1608 Metric)	Colorless	20 mcd	Standard	1.1 mm	Surface Mount	Blue	2 mA	465 nm	0.7 mm	1608	2.65 V	1.6 mm	0.8 mm		460 nm	40 °
Kingbright APTD1608SYCK/J3-PF	Clear	Round with Domed Top	0603 (1608 Metric)	Colorless	800 mcd	Standard	1.1 mm	Surface Mount	Yellow	20 mA	590 nm	0.7 mm	2-SMD	2 V	1.6 mm	0.8 mm	60 °	590 nm
Kingbright APTD1608LSECK/J3-PF	Clear	Round with Domed Top	0603 (1608 Metric)	Colorless	50 mcd	Standard	1.1 mm	Surface Mount	Red	2 mA	625 nm	0.7 mm	2-SMD	1.8 V	1.6 mm	0.8 mm	60 °			640 nm
Kingbright APTD1608SURCK	Clear	Round with Domed Top	0603 (1608 Metric)	Colorless	250 mcd	Standard	1.1 mm	Surface Mount	Red	20 mA	630 nm	0.7 mm	Chip LED	1.95 V	1.6 mm	0.8 mm	60 °	645 nm
Kingbright APTD1608LSURCK	Clear	Round with Domed Top	0603 (1608 Metric)	Colorless	110 mcd	Standard	1.1 mm	Surface Mount	Red	2 mA	630 nm	0.7 mm	1608	1.75 V	1.6 mm	0.8 mm	60 °	645 nm
Kingbright APTD1608SECK	Clear	Round with Domed Top	0603 (1608 Metric)	Colorless	500 mcd	Standard	1.1 mm	Surface Mount		20 mA	601 nm	0.7 mm	2-SMD	2.1 V	1.6 mm	0.8 mm	60 °	610 nm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.45
		10	$ 0.30
		100	$ 0.20
		500	$ 0.14
		1000	$ 0.12
	Digi-Reel®	1	$ 0.45
		10	$ 0.30
		100	$ 0.20
		500	$ 0.14
		1000	$ 0.12
	Tape & Reel (TR)	2000	$ 0.10
		6000	$ 0.10
		10000	$ 0.09
		50000	$ 0.08
		100000	$ 0.07

Description

General part information

APTD1608 Series

Orange 601nm LED Indication - Discrete 2.1V 0603 (1608 Metric)
