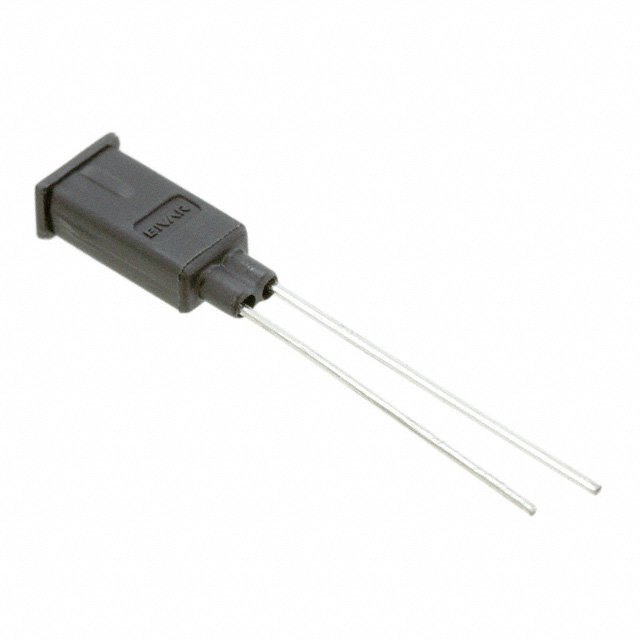

PMR4GD

Active

Bivar Inc.

STANDARD PANEL MOUNT INDICATORS, 2 LEADED, 2MM X 4MM RECTANGULAR, GREEN LED W\ DIFFUSED LENS / BAG

Search across all available documentation for this part.

Active

Bivar Inc.

STANDARD PANEL MOUNT INDICATORS, 2 LEADED, 2MM X 4MM RECTANGULAR, GREEN LED W\ DIFFUSED LENS / BAG

Technical Specifications

Parameters and characteristics for this part

Part	Termination Style	Wavelength - Peak	Lamp Color	Lens Style	Lens Transparency	Lens Size [x]	Lens Size [y]	Panel Cutout Shape	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Viewing Angle	Millicandela Rating	Type	Current	Voltage
Bivar Inc. PMR4GD	PC Pin	568 nm	Green	Rectangle with Flat Top	Diffused	2.1 mm	4 mm	Rectangle	5.59 mm	0.14 "	3.56 mm	0.22 "	120 °	8 mcd	LED	150 mA	2.1 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Panel Indicator Green Diffused 120° 2.1V 150mA PC Pin
