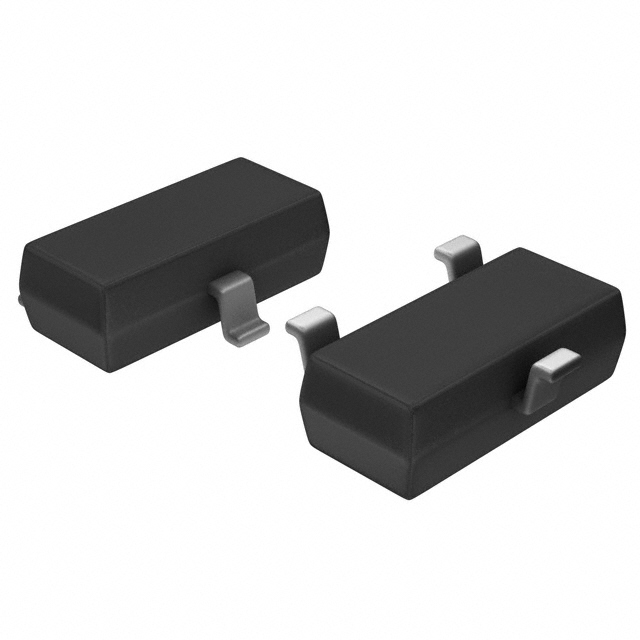

MP8201DT-LF-Z
ActiveVOLTAGE REFERENCE, PRECISION, SHUNT - ADJUSTABLE, 159.2 MV TO 160.8 MV, 3 PINS, SOT-23
Deep-Dive with AI
Search across all available documentation for this part.
MP8201DT-LF-Z
ActiveVOLTAGE REFERENCE, PRECISION, SHUNT - ADJUSTABLE, 159.2 MV TO 160.8 MV, 3 PINS, SOT-23
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MP8201DT-LF-Z |
|---|---|
| Current - Cathode [custom] | 60 µA |
| Current - Output | 20 mA |
| Mounting Type | Surface Mount |
| Noise - 0.1Hz to 10Hz | 4 µVp-p |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output Type | Adjustable |
| Package / Case | SOT-23-3, TO-236-3, SC-59 |
| Reference Type | Shunt |
| Supplier Device Package | SOT-23-3 |
| Temperature Coefficient | 85 ppm/°C |
| Voltage - Output (Max) | 10 V |
| Voltage - Output (Min/Fixed) | 1.2 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 3000 | $ 0.49 | |
| 6000 | $ 0.47 | |||
| 15000 | $ 0.45 | |||
Description
General part information
MP8201 Series
The MP8201 is a low voltage, precision, adjustable shunt regulator. The MP8201 can operate from 1.2V to 12V where the desired value is set by external resistors. This wide dynamic rang, gives the designers outstanding flexibility in the development of powWide Input Voltage Range: 1.2V to 12V Operating Current From 60µA to 20mA SOT-23 Package Initial Accuracy: ±0.5% 1? Dynamic Output Resistance of Stable With No External Capacitor Temperature Range: -40°C to +85°C
