0022454056

Obsolete

Molex

TERM BLK 5POS TOP ENT 4.57MM PCB

Search across all available documentation for this part.

Obsolete

Molex

TERM BLK 5POS TOP ENT 4.57MM PCB

Technical Specifications

Parameters and characteristics for this part

Specification	0022454056

Color	White
Contact Material - Plating [custom]	Tin Plated
Contact Material - Plating [custom]	Phosphor Bronze
Mating Orientation	Vertical with Board
Mounting Type	Through Hole
Number of Levels	1
Operating Temperature [Max] [custom]	158 °F
Operating Temperature [Min] [custom]	-10 °C
Pitch [x]	0.18 in
Pitch [x]	4.57 mm
Positions Per Level	5
Voltage	600 V
Wire Gauge [Max]	20 AWG
Wire Gauge [Min]	16 AWG
Wire Termination	Push-In Spring, Screwless - Leg Spring

Part	Number of Levels	Voltage	Color	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Mating Orientation	Positions Per Level	Contact Material - Plating [custom]	Contact Material - Plating [custom]	Mounting Type	Wire Gauge [Min]	Wire Gauge [Max]	Pitch [x]	Pitch [x]	Wire Termination
Molex 0022454056	1	600 V	White	-10 °C	158 °F	Vertical with Board	5	Tin Plated	Phosphor Bronze	Through Hole	16 AWG	20 AWG	0.18 in	4.57 mm	Push-In Spring Screwless - Leg Spring

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

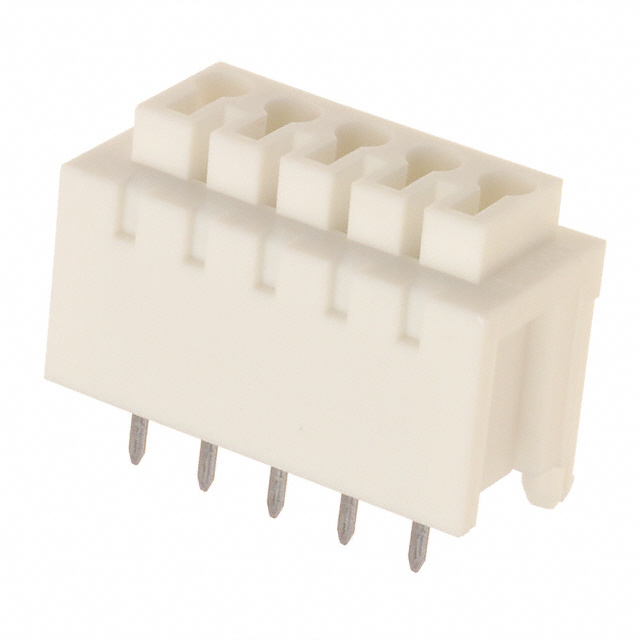

5 Position Wire to Board Terminal Block Vertical with Board 0.180" (4.57mm) Through Hole
