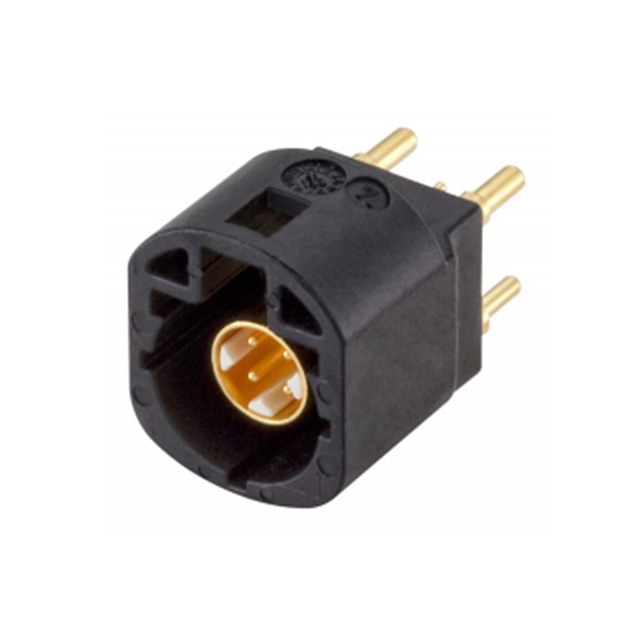

D4S10A-400L5-A
ActiveRosenberger
CONN HSD FAKRA PLUG STR 100OHM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
D4S10A-400L5-A
ActiveRosenberger
CONN HSD FAKRA PLUG STR 100OHM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | D4S10A-400L5-A |
|---|---|
| Body Finish | Gold |
| Body Material | Brass |
| Center Contact Material | Brass |
| Center Contact Plating | Gold |
| Connector Style | Quadraxial, Fakra, HSD® |
| Connector Type | Male Pin, Plug |
| Contact Termination | Solder |
| Dielectric Material | Liquid Crystal Polymer (LCP) |
| Fastening Type | Latch Lock |
| Features | Code A |
| Frequency - Max [Max] | 2 GHz |
| Housing Color | Black |
| Impedance | 100 Ohms |
| Mating Cycles | 25 |
| Mounting Type | Through Hole |
| Number of Ports | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Shield Termination | Solder |
| Voltage Rating | 100 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 19.13 | |
| 10 | $ 16.75 | |||
| 25 | $ 16.03 | |||
| 50 | $ 15.51 | |||
| Tape & Reel (TR) | 125 | $ 15.00 | ||
| 250 | $ 14.17 | |||
| 625 | $ 13.76 | |||
Description
General part information
D4S10A Series
HSD®, Fakra, Quadraxial Connector Plug, Male Pin 100 Ohms Through Hole Solder
