3296X-1-102ALF

Active

Bourns Inc.

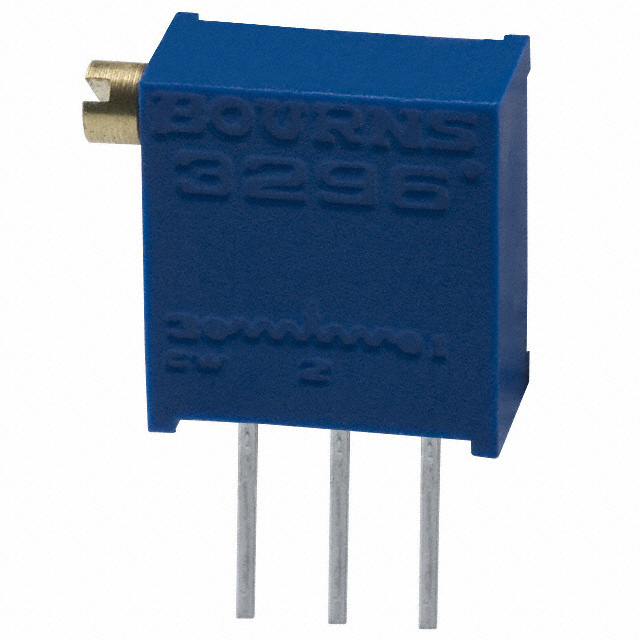

TRIMMER 1K OHM 0.5W PC PIN SIDE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

3296X-1-102ALF

Active

Bourns Inc.

TRIMMER 1K OHM 0.5W PC PIN SIDE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3296X-1-102ALF

Adjustment Type	Side Adjustment
Mounting Type	Through Hole
Number of Turns	25
Power (Watts)	0.5 W
Power (Watts)	0.5 W
Resistance	1000 Ohms
Resistive Material	Cermet
Size / Dimension [x]	10.03 mm
Size / Dimension [x]	0.395 in
Size / Dimension [y]	0.19 "
Size / Dimension [y]	4.83 mm
Temperature Coefficient	100 ppm/°C
Termination Style	PC Pins
Tolerance	10 %

3296X Series

Part	Mounting Type	Termination Style	Resistance	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Resistive Material	Adjustment Type	Number of Turns	Tolerance	Power (Watts)	Power (Watts)	Temperature Coefficient
Bourns Inc. 3296X-1-102A	Through Hole	PC Pins	1000 Ohms	0.19 "	4.83 mm	10.03 mm	0.395 in	Cermet	Side Adjustment	25	10 %	0.5 W	0.5 W	100 ppm/°C
Bourns Inc. 3296X-1-505	Through Hole	PC Pins	5 MOhms	0.19 "	4.83 mm	10.03 mm	0.395 in	Cermet	Side Adjustment	25	10 %	0.5 W	0.5 W	100 ppm/°C
Bourns Inc. 3296X-1-504RLF	Through Hole	PC Pins		0.19 "	4.83 mm	10.03 mm	0.395 in	Cermet	Side Adjustment	25	10 %	0.5 W	0.5 W	100 ppm/°C
Bourns Inc. 3296X-1-225LF	Through Hole	PC Pins	2.2 MOhms	0.19 "	4.83 mm	10.03 mm	0.395 in	Cermet	Side Adjustment	25	10 %	0.5 W	0.5 W	100 ppm/°C
Bourns Inc. 3296X-1-101	Through Hole	PC Pins	100 Ohms	0.19 "	4.83 mm	10.03 mm	0.395 in	Cermet	Side Adjustment	25	10 %	0.5 W	0.5 W	100 ppm/°C
Bourns Inc. 3296X-1-203ALF	Through Hole	PC Pins	20 kOhms	0.19 "	4.83 mm	10.03 mm	0.395 in	Cermet	Side Adjustment	25	10 %	0.5 W	0.5 W	100 ppm/°C
Bourns Inc. 3296X-1-100LF	Through Hole	PC Pins	10 Ohms	0.19 "	4.83 mm	10.03 mm	0.395 in	Cermet	Side Adjustment	25	10 %	0.5 W	0.5 W	100 ppm/°C
Bourns Inc. 3296X-1-471LF	Through Hole	PC Pins	470 Ohms	0.19 "	4.83 mm	10.03 mm	0.395 in	Cermet	Side Adjustment	25	10 %	0.5 W	0.5 W	100 ppm/°C
Bourns Inc. 3296X-1-101LF	Through Hole	PC Pins	100 Ohms	0.19 "	4.83 mm	10.03 mm	0.395 in	Cermet	Side Adjustment	25	10 %	0.5 W	0.5 W	100 ppm/°C
Bourns Inc. 3296X-1-102ALF	Through Hole	PC Pins	1000 Ohms	0.19 "	4.83 mm	10.03 mm	0.395 in	Cermet	Side Adjustment	25	10 %	0.5 W	0.5 W	100 ppm/°C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 3.78
		10	$ 3.31
		25	$ 2.95
		50	$ 2.78
		100	$ 2.72
		250	$ 2.60
		500	$ 2.13
	Tape & Box (TB)	1000	$ 1.83
		2000	$ 1.71
		5000	$ 1.65

Description

General part information

3296X Series

1 kOhms 0.5W, 1/2W PC Pins Through Hole Trimmer Potentiometer Cermet 25.0 Turn Side Adjustment
